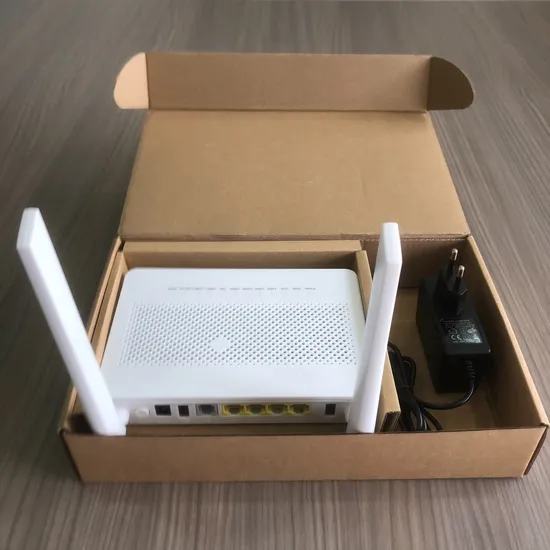

HS8546V5 Gpon ONU 1ge+3fe 2.4G/5g Dual Band WiFi ONU Ont Same as Eg8145V5

Product Description

Product Description 2.4/5G HS8546V5 GPON ONT: 2.4/5G WIFI GPON ONT HS8546V5/EG8145V5
GPON 4*GE (or 1*GE+3*FE)+1*POTS+2*USB, with 2.4G/5G WiFi
5dBi ENG firmware, EU power
Connector type: SC/UPC
Product Parameters Device Parameters

Dimensions(DxWxH)	(225x126x30)mm	System power supply	11V-14VDC,1.5A
Weight	<0.65kg	Static power consumption	8W
Operating temperature	0ºC to 40ºC	Maximum power consumption	18.5W
Operating humidity	5%RH to 95% RH(non-condensing)	Ports	4*GE RJ45+1RJ11+2.4G/5G WIFI+2USB 1*GPON
Power adapter input	100-240V AC,50-60HZ	Idicators	POWER/PON/LAN/LOS/TEL/USB/WLAN/WPS

Interface Parameters

GPON Port	·Ethernet port-based vlan tags and tag removal ·Class B+ ·Receiver sensitivity:-27dBm ·Wavelengths:US 1310nm,DS 1490nm ·Wavelength blocking filter(WBF) ·Flexible mapping between GEM Port and TCONT ·GPON:consistent with the SN or password authentication defined in G.984.3 ·Bi-directional FEC ·SR-DBA and NSR-DBA
Ethernet Port	·Ethernet port-based vlan tags and tag removal ·1:1VLAN,N:1 VLAN,or VLAN transparent transmission ·QinQ VLAN ·Limit on the number of learned MAC address ·MAC address learning ·Transparent transmission of IPv6 packets at layer 2
POTS Port	·Maximum REN: 4 ·G.711A/μ, G.729a/b, and G.722 encoding/decoding ·T.30/T.38/G.711 fax mode ·DTMF ·Emergency calls (with the SIP protocol)
USB Port	·USB2.0 · FTP-based network storage
WLAN	IEEE 802.11 b/g/n/ac ·2.4G:2 x 2 MIMO ·5GHz: 2 x 3 MIMO 802.11a/n/ac ·Antenna gain: 2 dBi ·WMM ·Multiple SSIDs ·WPS

Company Profile Anhui Zhuhuai Import and Export Trading Co.,Ltd. is committed to promoting the development of global optical fiber, optical cable and switch trade. We have a team of energetic and passionate professionals, adhering to the values of "Integrity, Innovation, Interconnection and Progress", with the vision of "Linking the World, Boda World". Our business covers intelligent buildings, overseas optical fiber, fiber optic cables and switches. We always adhere to the customer demand-oriented, through innovation and excellent quality, to provide customers with the best service. Our products are exported to many countries and regions such as Africa and Southeast Asia, and are highly trusted and praised by our customers.
Our business field covers the research, development, production and sales of fiber optic cables as well as switches. Among them, fiber optic cable products include fiber optic cables, fiber optic patch cords, fiber optic adapters, etc., and switch products include Ethernet switches, POE switches, etc.. These products are widely used in the network construction of telecom, mobile, Unicom and other carriers; not only that, but also in the network upgrade and transformation of government, enterprises, schools and other organizations often use our products.
FAQ Q: Are you a factory or trading company? A: we are a manufacturer & trading company Q: How to proceed an order for the products? A:Firstly,let us know your requirements or applications;
Secondly,we quote according to your requirements or suggestions;
Thirdly,customer confirms the samples and places deposit for formal order;
Lastly,we arrange the production. Q: Whats your main products? A:Outdoor fiber optic cables;indoor fiber optic cables;FTTH Drop cables ;ADSS; indoor armored patch cords fiber cable SC/LC/FC/ST;MTP/MOP optical patch cord. Q: Do you have certificate for raw material A:We build long term relationship cooperation with quality ISO9001,ROHS raw material supplier. Q: What's your products' advantages? A:Good quality and competitive prices. Strictly quality control when producing.
Professional team work, from design, development, producing, assemble, packing and shipping.Good after-sale service.
Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods. Q: What payment method do you accept? A:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc. Q: What is your delivery time? A:7-15 days for common fiber cables, 10-20 days for your customized requirements. Q: Do you accept OEM,ODM? A:Yes, we accept them .
