Wolf Mini Excavator, Hydraulic Excavator, Kubota Excavator, Imported Hydraulic Excavator, Rubber Track Mini Excavator
Basic Info.
Model NO.
WE18
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Rops/Fops
Bucket Capacity
0.045
Size
Small-Scale
Certification
CE
Condition
New
Engine
Laidong Euro5 Engine
Swing Motor
Eaton
Traveling Motor
Eaton
No.of Cylinder
3
Overall Length
3800mm
Overall Width
1050mm
Overall Height
2280mm
Max. Digging Depth
2050mm
Max. Dumping Height
2390mm
Max.Digging Radius on Ground Radius
3860mm
Operating Weight
1800kg
Arm Digging Force
9.3kn
Hydraulic Tank Capacity
27L
Tail Swing Radius
1125mm
Fuel Tank Capacity
26L
Transport Package
4 Sets in 20gp, 8 Sets in 40hq
Specification
3800mmx1050mmx2280mm
Trademark
Wolf
Origin
Shandong, China
HS Code
84295100
Production Capacity
3000sets/Year
Packaging & Delivery
Package Size
3800.00cm * 1050.00cm * 2280.00cm
Package Gross Weight
1800.000kg
Product Description

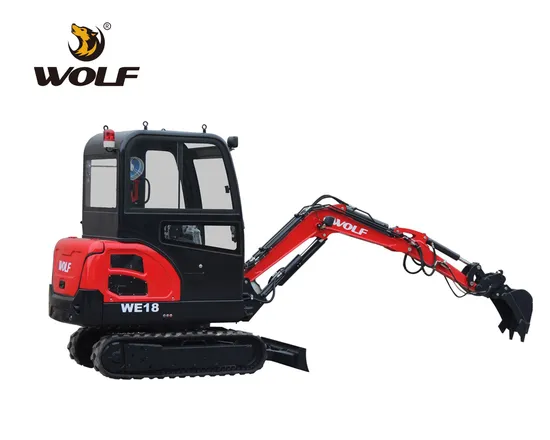

Wolf 1.8 ton mini excavator is designed for small project,garden,farmland municioal work etc,and also can be used in playground or in public parks.
This excavator comes with a small engine and simple design,which makes it easy to maintain.
It is reliable and user-friendly. Capable of digging ,grabbing,drilling,bulldozing,ditch-cleaning and rock-breaking,this is one perfect machine you will definitely need.
Comes with one standard digging bucket.
| WE18 With Open Cabin | WE18 With Enclosed Cabin |
Standard Configuration:- Laidong Euro5 engine,18.8KW- Standard bucket,435mm- Eaton Motor and Travel Motor
| Cabin Inside | Standard Joystick |
| Heater | Transmission System |
Two options for the Engine
| Laidong Euro 5 Engine, 18.8KW | Kubota D1105 Euro5 Engine, 14KW |
Display from different angles:
Specifications:
| Engine | Model | Laidong KM | |
| Type | Direct injection, water cooled, natural intake | ||
| No. of cylinder | 3 | ||
| Main Performance | Swing Speed | r/min | 10-12 |
| Traveling Speed | km/H | 2.8 | |
| Grade ability | % | 70(35°) | |
| Traveling Tracking Force | kN | 15 | |
| Bucket Digging Force | kN | 11.5 | |
| Arm Digging Force | kN | 9.3 | |
| Hydraulic System | Hydraulic system working pressure | Mpa | 16 |
| Hydraulic Pump | Gear Pump | TJHD | |
| Hydraulic pump flow | L/min | 2×22+8.8 | |
| Swing Motor | Eaton | ||
| Traveling Motor | Eaton | ||
| Fuel Tank Capacity | L | 26 | |
| Hydraulic Tank Capacity | L | 27 | |
| Overall Dimensions | Overall Length | mm | 3800 |
| Overall Width | mm | 1050 | |
| Overall Height | mm | 2280 | |
| Ground clearance | mm | 485 | |
| Track length | mm | 1630 | |
| Track width | mm | 230 | |
| Undercarriage width | mm | 1050 | |
| Undercarriage ground clearance | mm | 235 | |
| Dozer Blade | mm | 1050×240 | |
| Operation parameters | Operation Weight | KG | 1800 |
| Bucket Capacity | m3 | 0.06 | |
| Max. Digging Radius | mm | 3860 | |
| Max. Digging Depth | mm | 2050 | |
| Max. Digging Height | mm | 3370 | |
| Max. Dumping Height | mm | 2390 | |
| Max. Dozer Cutting | mm | 270 | |
| Max. Dozer Lifting | mm | 235 | |
| Boom Deflexion (Left/Right) | ° | 75/45 | |
| Tail Swing Radius | mm | 1125 | |
| Front Min. Swing Radius | mm | 1720 | |
Attachments
Packaging Way:
One set can be loaded by LCL in one wooden box.
4 sets can be loaded in one 20GP container.
8 sets can be loaded in one 40HQ container.
Warranty:
We have 12 months warranty, within 12 months, if any parts broken because of quality problem without human causes, send us related pictures/videos, we will send good parts to you for free, within 7 working days, ensure the problem could be solved as soon as possible. After the warranty period, we will provide zero-profit spare parts support. our professional after sales team is ready to help at any time when there is any problem,and supply of replacement parts could be guaranteed no matter how many years your loader has been used. Choosing Wolf,you will have one year warrant and a life-time service!
