WMTCNC torno mecanico metal lathe CJM320A bench gear head lathe

Product Description

Product Description

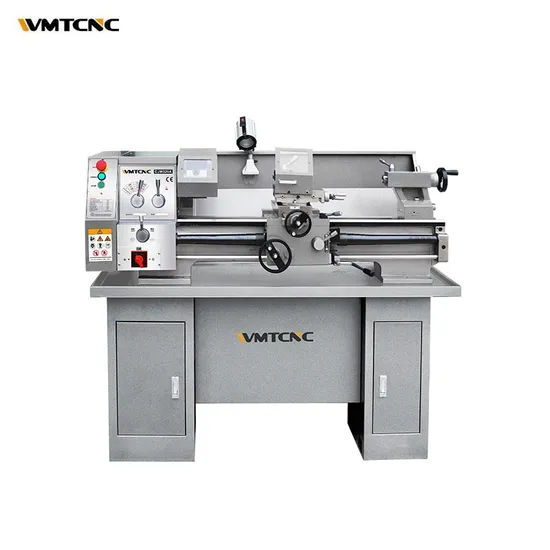

WMTCNC metal lathe CJM320A bench gear head lathe main features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1650rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.

Specification	CJM320A
Max. swing over bed	330mm
Max. swing over cross slide	220mm
Max. swing over gap	N/A
Width of bed	160mm
Distance between centers	600mm/750mm
Spindle bore	38mm
Spindle taper	MT5
Spindle speed range	60-1650rpm
Longitudinal feed range	0.135-1.80mm/rev
Cross feed range	N/A
Metric thread range	0.5-4mm
Inch thread range	9-40T.P.I.
Travel of tailstock quill	70mm
Taper of tailstock quill	MT3
Motor power	1.1kw
G.W	280/300kg
N.W	320/340kg
Packing size	1330/1550×760×720mm

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
