Perfiladora Press Stud Forming Machine Purlin Forming

Product Description

perfiladora press stud forming machine purlin forming
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Main parameters

No.	Main parameter of furring roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	As customer need
3	Thickness of the plate	0.5-1.2mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	12 rows
6	Diameter of the roller	Φ52mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	4kw
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 3.5T
18	Dimensions	5.5*1.0*1.5m
19	Voltage	380V 50Hz 3phases(changeable as needs)
20	Certificate	CE/ISO

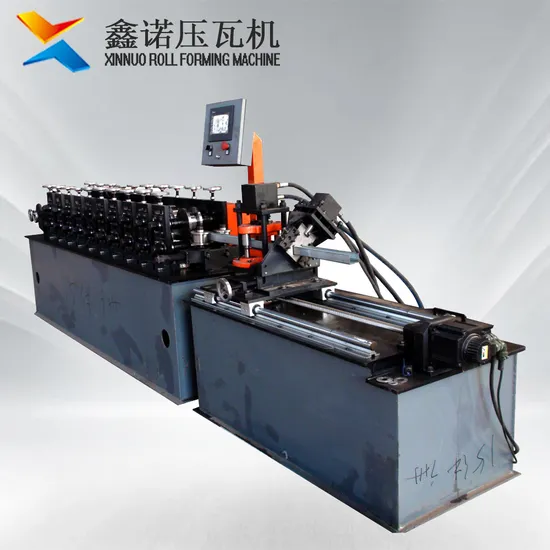

PICTURE SHOW
ADVANTAGE

	Our machine	Influence of the machine
Main forming machine body	High strength H350 or H400 steel. machine through milling machine after welding	Sturdy and durable, ensure the plate standard
Material of the roller	High grade No.45 forged steel	Ensure the forming effect of the panel and the use age will be longer,the surface of the panel
Material of the cutting	GCr12 steel with quenched treatment	Cutting is out of shape not easily and use age will be longer,the panel size precision
Material of the active shaft	High grade solid No.45 carbon steel, Shaft diameter is 72mm.	Improve the integrated mechanic feature of the shaft and keep product standard
Control system	PLC control system,some elements are imported from Japan and Germany	Machine become more accurate and more stable

ABOUT US
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty
