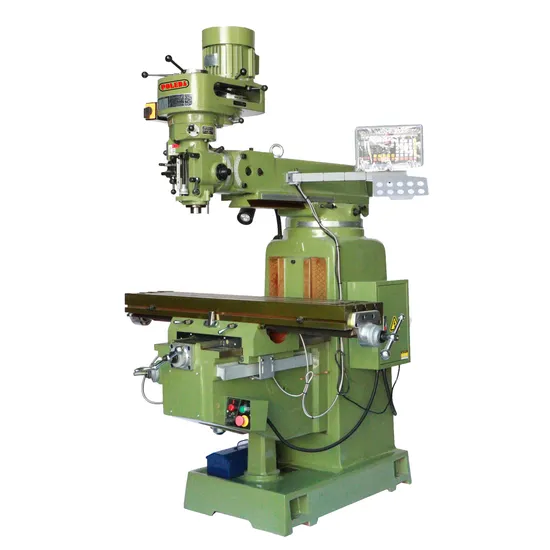

4m High Precision Vertical Turret Milling Machine Taiwan Quality

4m High Precision Vertical Turret Milling Machine Taiwan Quality

US$3,990.00
1-11 set
US$2,690.00
12+ set

Basic Info.

Model NO.
3M/3S/4M/4S
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Pallet or Wooden Box
Specification
2000*1600*2300
Trademark
POLEDA
Origin
China
HS Code
8459590000

Product Description

Product Description
A milling machine is a versatile and indispensable machine tool that cuts material on a machined part using a rotating tool. Renowned as one of the most fundamental tools in metal cutting processes, this machine excels in its ability to craft planes, surfaces, and gear parts. Furthermore, it can adeptly perform drilling, reaming, boring, and an array of other intricate processes.
Basic structure of milling machine:
The core structure of the milling machine comprises several key components: the bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor, and more.
1. Bed: The bed serves as the essential support framework of the milling machine, bearing the weight of its various components. Typically cast, the bed ensures excellent stability and robust rigidity.
2. Slide Table: The slide table is a dynamic part of the milling machine, designed to move back and forth on the bed. Equipped with a workbench and horizontal shaft, the slide table facilitates precise positioning and processing of the machined part through its movements.
3. Workbench: The workbench functions as the operational platform of the milling machine, holding and securing the machined part. It offers flexibility to rotate, tilt, and perform various motions, enabling the completion of complex machined part processing.
Product Parameters
Structural Characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other main components are crafted from high-strength materials, ensuring robust and durable construction.
These components undergo artificial aging treatment to guarantee the long-term stability and reliability of the machine.
2. The milling head features a turret milling head with manual and micro feeding methods for convenient and precise processing.
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane, significantly expanding the machining capabilities.
3. The vertical and horizontal table offers three types of feeds: manual, mobile, and mobile fast feed, with mobile feed providing 8 different speeds for diverse processing needs.
These feeds meet various processing requirements, while the fast feed ensures the workpiece quickly reaches the machining position, reducing non-machining time.
4. The lifting platform Z-lifting is operable manually and automatically, with interlocking mechanisms to eliminate unsafe factors.
5. The table's X direction travel extends up to 800mm, with X, Y, Z guide pairs treated by ultra-audio quenching, precision grinding, and scraping for enhanced accuracy and extended machine life.
These treatments significantly improve accuracy and prolong the machine's service life.
6. The manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, reducing wear and maintaining efficient operation.
Additionally, the cooling system adjusts the coolant flow via the nozzle to accommodate different processing needs.
7. The operating system is ergonomically suspended on the upper right side of the machine through a support arm, making it easy to operate.
The operation panel, designed with intuitive figurative symbols, offers simplicity and ease of use.
8. The turret milling machine spindle options include R8, NT30, and NT40 to suit various requirements.
9. It is equipped with an advanced electrical box and controller, featuring 110V and 220V output sockets for enhanced functionality.
Product Name Milling machine
Product model 3M/3S/4M/4S
Product technical parameters
dimension Table size 1270*254MM

journey
Left and right stroke(X) 740MM
Front and rear stroke(Y) 380MM
Up and down stroke(Z) 360MM
Arm reach 520MM
Distance from spindle end face to table surface 50-410MM
Table bearing 300KG

Principal axis coefficient
Spindle taper R8
Spindle speed 80-5440RPM(16-speed)
Spindle travel 127MM
Spindle horse power 3HP
Milling head Milling head tilt Angle 45° front and back
Lead screw Three-axis screw diameter Tr32mm
Three-axis lead screw pitch 5mm

Machine profile dimensions
T-slot (Number * Size * Spacing) 3-15.88*65MM
Machine size (L * W * H)(MM) 1750*1700*2200MM
Approximate machine weight 1280kgs
disposition Accessories name quantity

Standard parts for machine tools
1,Hand oil pump 1
2,Work light 1
3,Organ board + protective glue 1
4,Lever 1
5,Tools and toolboxes 1
6,Operating instruction 1

Special parts for machine tools
7,Two axis electronic ruler 1
8, X-axis automatic feed 1
9, 6 "flat pliers 1
Clamp plate 1
11, chuck 1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For standard items that we have in stock, the MOQ is just 1 set.
2.How do you ensure the quality of your products?
A. We place paramount importance on maintaining high-quality standards. Our unwavering principle is to always providecustomers with superior quality, competitive prices, and exceptional service.
3.What are the main products of your company?
A: We specialize in all kinds of machinery, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: We offer various trade terms including Ex-works (EXW), Free on Board (FOB), Cost and Freight (CFR), and Cost, Insurance, and Freight (CIF).
5.What are your payment terms?
A: Payment terms are T/T, with a 30% initial payment upon order and the remaining 70% balance before shipment.
6.Which CNC systems do you use?
A: We use a variety of CNC systems such as FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Send us your product drawings and application details, and we will recommend the most suitable machines for you.
8.What kind of packaging do you offer?
A. We typically use plywood cases to ensure all goods are in excellent condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A: Yes, we offer both OEM and ODM services to meet the specific needs of any customer. 10.How about the warranty?
A: Our warranty period is one year from the date of delivery. Even after the warranty period, we provide lifetime service for our machines.
