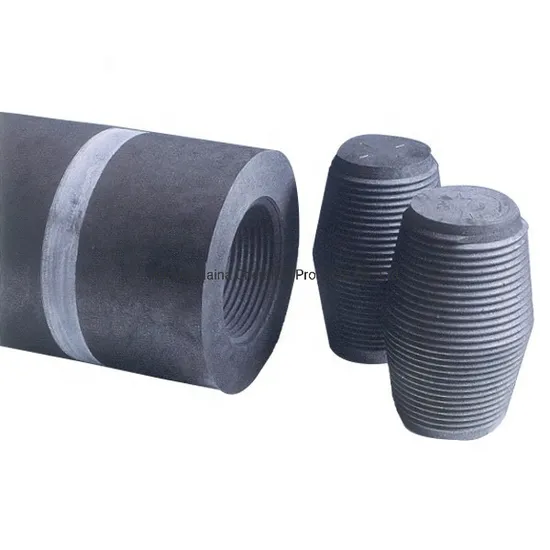

Reasonable Price Exact Mechanical Machining China Manufacturer Carbon 4tpl Nipples RP HP UHP Graphite Electrode

Reasonable Price Exact Mechanical Machining China Manufacturer Carbon 4tpl Nipples RP HP UHP Graphite Electrode

US$2,000.00
5-19 Tons
US$1,800.00
20+ Tons

Basic Info.

Model NO.
UHP/HP/RP
Apparent Density (G/Cm³ )
>1.68
Flexural Strength
8-12 MPa
Resistance (μΩ.M)
5.5
Type
Graphite Electrodes
Composition
Clay
Carbon Content
High-Carbon
Grade
UHP
Forming Way
Extruded Graphite
Crystal Morphology
Compact Crystalline Graphite
Transport Package
Standard Exporting Wooden Pallet
Specification
1600~2700mm
Trademark
xingtaihaina
Origin
China
HS Code
8545110000
Production Capacity
50000/Year

Product Description


Product Description
SPECIFICATION LIST
UHP Size and Tolerance
Diameter (mm)
Length (mm)
Nominal diameter
Actual diameter
Nominal length
Tolerance
Short feet length
mm
inch
max
min
mm
mm
max
min
200
8
209
203


1800/2000/
2200/2300
2400/2700



±100



-100





-275


250
10
258
252
300
12
307
302
350
14
357
352
400
16
409
403
450
18
460
454
500
20
511
505
550
22
556
553
600
24
613
607
graphite electrodes graphite electrode graphite rod uhp graphite electrodes graphite mold graphite electrode for arc furnaces graphite electrode price graphite scrap graphite electrode uhp XINGTAIHAINA
Physical and Chemical Index of UHP

Items

unit
Diameter: 300-600mm
Standard
Test data
Electrode
Nipple
Electrode
Nipple
Electrical resistance
μΩm
5.5-6.0
5.0
5.0-5.8
4.5
Flexure strength
Mpa
10.5
16
14-16
18-20
Modulus of elasticity
GPa
14
18
12
14
Ash content
%
0.2
0.2
0.2
0.2
Apparent density
g/cm3
1.64-16.5
1.70-1.72
1.72-1.75
1.78
Factor of expansion(100-600ºC)
x10-6/ºC
1.5
1.4
1.3
1.2

PRODUCT DISPLAY
PRODUCT DETAILS
Product advantage:
Anti-oxidation treatment for longevity.
High-purity,high-density,strong chemical stability.
High machining accuracy,good surface finishing.
High mechanical strength,low electrical resistance.
Resistant to cracking & spalling.
High resistance to oxidation and thermal shock.
Notes of usage:
Being hard and brittle, artificial GE shall be specially handled. Proper peration may reduce the consumption and cost.
1. Use special hoist tools to hoist electrodes. It is strictly forbid to prize electrodes ends up with crowbar. It must be handled with great care during transport to avoid damage.
2. GE must be kept away from being moistened or wetted by ram, snow and water, and must be kept dry. It must be dried in the furnace before using. The drying temperature in the furnace shall less than 120ºC. The drying period shall be not less than 48hours.
3. Not to be stored up near clay, slag etc. to avoid surface pollution and increasing resistivity.
4. Carefully checking before connection, make sure that the socket and nipple thread is not damaged, nipple pitch plug is in. Nipple screw shall not be damaged during lifting.
5. Blow the nipple and socket threads with compressed air.
6. GE must be connected and contacted closely and straigtly. Use moment spanner for connecting electrode with suitable force. The gap between elelctrodes shall be less than 0.4mm.
7. The holding device must hold the electrode tightly, good contact and non arc. Otherwise, the connecting area will get red, oxidized and thin, leading breakage.
8. Threaded portion of nipple socket shall not be damaged during hoisting by metal plug. Hoisting plug shall pin out and keep nipple socket clean.
9. Lifting device of electrode must move stably when moving electrode. Carefully check the position of the furnace cover after being repaired. To seal the cover with refractory to prevent up electrode from being oxidized by fire.
10. The holding device shall hold the electrode beyond the socket area.
11. For charging the furnace, the large scrap should be put at the bottom. The small ones on the top, charge material with low electric conductivity shall not been put pn the top. In the course of melting, unmelted material shall be taken in time to avoid electrode breaking by falling material.
APPLICATION Graphite electrode is a conductive material for smelting iron and steel, brown corundum, metal silicon and so on in electric furnace. Circuit steelmaking
Company Profile XINGTAIHAINA CHEMICAL is one of professional manufacturer & supplier of graphite electrode and carbon products in Hebei China. In last 12 years, Our product has been exported to more than 10 foreign countries and areas ( Jordan, Egypt, Kenya, Nigeria, Colombia,) and got high reputation from our customers all over the world. The quality is up to international advanced level. All production process is led by Quality Management System in accordance with ISO9001:2008 standards. We have established our own professional technical & after sales service teams and provide our clients with timely and excellent service. We commit ourselves to assisting the clients to reduce production cost and increase productivity.

Packaging & Shipping
FAQ
Q1: Where can I get product and price information?
A1: Send us inquiry e-mail, we will contact with you when we receive your email, or contact me on chat app.
Q2: what's the payment terms?
A2: We accept 40% as deposit, and balance to be paid on seeing the scan copy of BL.
Q3: How to delivery the goods?
A3: We deliver the goods by truck to port, or loading in container in factory.
Q4: Are you trading company or factory?
A4: We are direct factory and have the most advanced machine and about 80 employee in our 15000m2 workshop.
Q5: What's the minimum order quantity?
A5: 18-20tons, one 20' fcl.
Q6: What's the delivery time?
A6: Witnin15 days after got the deposit.
