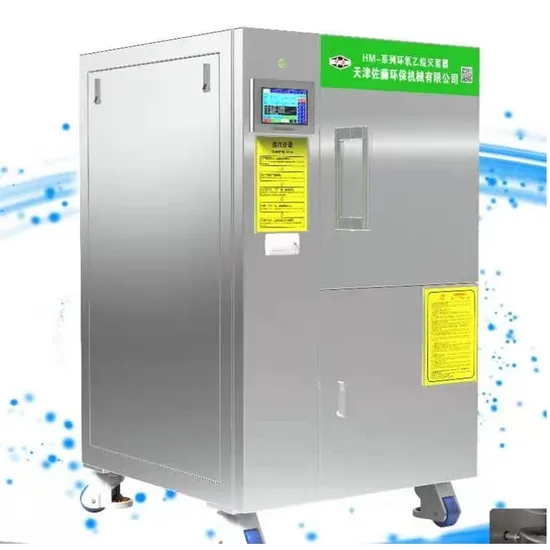

Hm238 Hospital Medical Equipment Ethylene Oxide Sterilizer

Product Description

Installation information:
a) Door type: fixed rotary, not movable.
b) Maximum noise that the sterilizer may generate is 65dB (A):
c) Vacuuming time: less than 30 minutes
Usage information:
a) Working temperature: 37/55ºC.
b) Relative humidity: 40~80%RH
c) Working pressure: -60/-65kPa.
d) Maximum working pressure: -65kPa.
e) Sterilant type: 100% ethylene oxide
3. Features of the sterilizer
A. Negative pressure sterilization, negative pressure cleaning, negative pressure residue removal, full negative pressure to ensure safety!
This sterilizer belongs to Class B sterilizer, with two preset working cycles of 37ºC and 55ºC
Sterilization, cleaning and residue removal process, the sterilizer always maintains a relative negative pressure to ensure that ethylene oxide does not leak. Even if a leak occurs, the control system will automatically detect the leak, automatically stop the sterilization process, issue an alarm, and automatically discharge ethylene oxide gas.
B. Residue removal analysis
When the sterilization process reaches the end of cleaning, it will automatically enter the residue removal (fully ensuring that the EO residue of the sterilized items is reduced to the minimum).
C. Continuous temperature monitoring
The temperature during the sterilization stage is maintained within the range of ±2ºC of the selected temperature. Once the temperature sensor detects a deviation of 3ºC from the preset temperature, the over-temperature protection device will automatically start, and the text prompts that the temperature is abnormal and alarms, and the heating is interrupted.
D. Humidity control
The humidity sensor is open and displayed throughout the sterilization process. According to the humidity setting value, humidification is performed evenly multiple times to ensure the appropriate humidity.
F. Unit-metered 100% ethylene oxide gas
This small can of gas is easy to install, use, and transport, and is simple to operate, safe and reliable.
G. Automatic control of puncturing the gas tank
Only when the dosing process is entered normally, the system will automatically start the dosing device, puncture the aerosol can, and release ethylene oxide gas.
H. Sterilization process status display
The LCD display located in the front continuously displays the sterilization process status in real time. (Such as: temperature, humidity, pressure, time, sterilization process, etc.).
Company Profile Shanghai Huazhe International, as the subsidiary company of Holley International in Shanghai, specializes in the export of Medical & Health Care products, manufactured by its affiliated factories. The factories, certified by ISO, utilize superior production lines with integrated quality assurance systems based on technology support from Holley Group Inc.
The Medical & Health Care products, with CE or FDA approval, are now exported to the Germany, United States, the UK, Spain, South America, Japan and many other European and Middle Eastern countries.
Our main products: Hospital Furniture (Including Hospital bed system, electric bed, medical Cabinets, medical Trolley, wheelchairs and so on) and Health care products (including Digital thermometer, digital blood pressure monitors, infrared ear thermometer, Glucose meter and so on). Meanwhile, they are also directly sold in local supermarkets and chain stores as home health care devices. Our products have got worldwide fine reputation.
Factory & Process
Certifications

Packaging & Shipping
FAQ 1. Shanghai Huazhe International is one trading company.
A: Shanghai Huazhe International is trading company in China to do export of hospital furnitures,equipments,rehabilitation products and health care products, but we have built factory in Shanghai province,China. We produce Hospital beds,beside table and the parts by ourselves.We can ensure our quality and cheap price.
2. OEM,ODM do you accept?How to order customized products?
A: We accept OEM,ODM business.We can produce customized design products with their logo.
If you can not clear which model you order better,you can tell us the function you want.We can suggest and design for you.
3.What is your after-service?
A: We supply free spares and quality after-service.
4.How long about the products warranty?
A: Usually is 1--3 years.
5.How long is the delivery time?
A: Within 7--15 days or as your date.
6.What is the payment terms?
A: T/T or 50% deposit,the balanced 50% before shipment or discuss.
