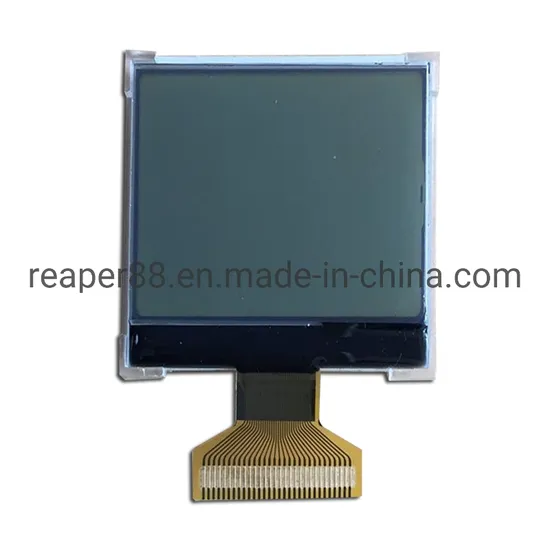

OEM Monochrome Graphic LCD Display Cog Type 128*64 Graphic LCD Module with Controller St7565r, FPC 15pin for Industrial. Medical. Equipment.

Product Description

OEM Monochrome Graphic LCD Display Cog Type 128*64 Graphic LCD Module with Controller St7565r, FPC 15pin for Industrial. Medical. Equipment.
Product Description

Specification:
Model NO.:	RP12864C
Dots:	128x64
LCM Type:	COG
Module size(W*H*T):	53.1 x 33.3 x 2.8mm
Viewing Area(W*Hmm):	50.1 x 24.0 mm
Dot Size(W*Hmm)	0.33 x 0.315 mm
Controller:	ST7565R
Backlight:	LED
Lcd Type:	FSTN,STN BLUE/Y-G
Operating Voltage	3V
Operating Temperature:	-20 ~ +70ºC
Storage Temperature:	-30 ~ +80ºC

General Description
Common Applications

Telecommunication Devices	Telephone,interphone,watch,tablet PC,radio,etc
Consumer Products	Camera,DVD player,toy, Cell Phone,game player,etc
Technical Equipment	Elevator controller,Industrial machine,etc
Office Automation	Printer,scanner,attendance machine,fax machine,etc
Home Appliances	Air-condition display,refrigerator,electric cooker,video doorbell,etc
Automobile	GPS,video player,speedometer,audio broadcast,etc
IT Products	Camera,handheld digital video,projector,media play,tablet PC,etc
Medical Equipment	Ultrasound machine,therapeutic equipment Blood pressure meter,etc

Advantages High display quality TFT LCD display with the advantage of color reproduction far superior to other types of display screens. The picture usually with high bright in color, high in saturation, and the pure white and pure black pictures are very pure. TFT is the one of the approved display screens by everyone.
TFT with Full Range of Viewing Angles For the same size display screen, the view angles of TFT LCD screen is larger. The view angles of TFT LCD screen is the same as its diagonal size. The IPS series of the TFT-LCD display screen can reach a full viewing angle of 178 degrees, which means that no matter which angle the user views the TFT-LCD display screen from, the effect is very good.
Wide Application Range of TFT-LCD Display The application of TFT-LCD display is very wide, TFT were widely used as LCD devices in computers, notebook computers, also used in industry equipment, transportation equipment, medical treatment equipment, smart home, electric power, AR/VR and others.
TFT LCD display size is complete, the interface types abundant, and easy to development. This is an important reason why the terminal chooses the TFT-LCD display screen.
Wide Use of Application Temperature Many TFT LCD display can use in low temperature and high temperature, the usual operation temperature is -20 degreen to 60 degreen, but some TFT LCD display can operation on -20-70 degreen, and storage temperature reach to -30-85 degreen. That means you can use these LCDs display in most countries around the world, and even use outdoor.
Good Color Performance Compared with the traditional LCD display screen, TFT LCD display with high resolution, It is easy to achieve high resolution even on a small screen. For this reason, the screen shows better color performance and get good image.
Low Power Consumption The traditional display is composed of many circuits, which need to consume a lot of power, and with the increasing volume, the power consumed by the internal circuit will certainly increase. In contrast, the power consumption of TFT LCD display is mainly consumed by its internal electrodes and driving IC, so the power consumption is much less than that of traditional displays.
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
Service
Related Types and Customized Services
TFT LCM Module
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive,Capacitive Touch Panels and IR touch screens from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows
what services can we provide
Customise Resistive and Capacitive Touch Panels as you requirements Customise AG, AR, AF, AS, Cover lens Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable. Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can refund or give a discount when you place mass production order.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
