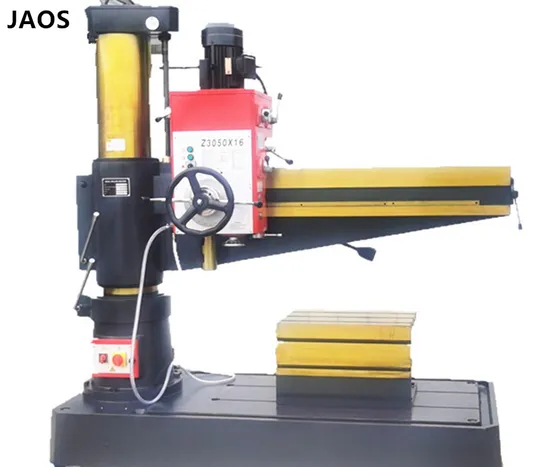

High Quality Heavy Duty Hydraulic Radial Drilling Machine
| US$4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JAOS
Origin
Shandong, China
Product Description
Product DescriptionProduct Parameters
| The main parameters | Z3050×16 Radial Drilling Machine |
| Maximum drilling diameter | 48/50 (steel/casting) mm |
| Distance from spindle centerline to column generatrix (minimum - maximum) | 360-1600 mm |
| Distance from spindle end to base table (minimum-maximum) | 300-1150 mm |
| Spindle travel | 220 mm |
| Spindle taper | MT.5 |
| Spindle speed stages | 6 Level |
| Spindle speed range | 78.135.240.350.590.1100 r/min |
Detailed Photos
Packaging & Shipping
FAQ
