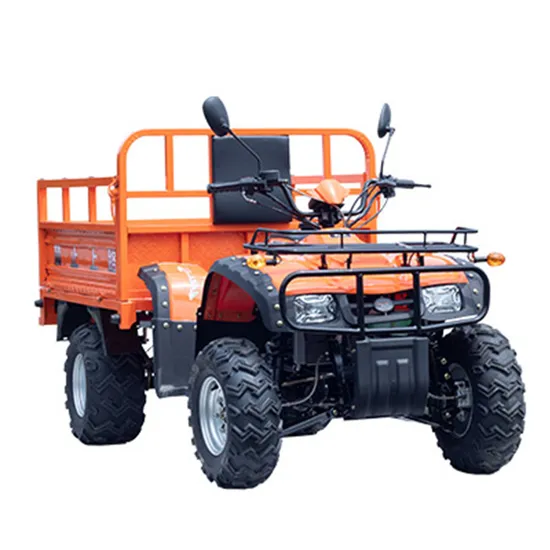

New Tech Factory Price Agriculture Adult ATV 4X4 Agriculture 250cc 300cc Cargo Farm ATV with Trailer

New Tech Factory Price Agriculture Adult ATV 4X4 Agriculture 250cc 300cc Cargo Farm ATV with Trailer

US$3,150.00
1-21 Pieces
US$3,050.00
22+ Pieces

Basic Info.

Model NO.
BS300U-2WD-1.5
Type
ATV
Power Source
Gasoline
Certification
ISO9001
Product Name
Farm ATV
Displacement(Cc)
275
Max Power HP(Kw)
12.5kw/6500rpm12.5kw/6500rpm
Spread of Axles
1950mm
Minimum Ground Clearance
170mm
Seat Height(mm)
800
Front Hub Type
5.5*10
Cargo Box Size(L*W*H)
1500*1130*500mm
Economy Speed Fuel Consumption
7L/100km
Transport Package
Wooden Box/Carton
Specification
3030*1200*1450mm
Trademark
customization or AEROBS
Origin
Chongqing, China
HS Code
8704109000
Production Capacity
15000/Per Month

Packaging & Delivery

Package Size
280.00cm * 122.00cm * 100.00cm
Package Gross Weight
560.000kg

Product Description

Product Description
Model BS300U-2WD-1.5
Product Size 3030*1200*1450(±50)mm
Cargo Box Size 1500*1100*510(±50)mm
Net Weight 373(±10)kg
Tire distance Front:830±10mm
Rear:930±10mm
Max. Speed ≤65km/h
Brake Control Mode Front:Hand
Rear:Foot
Tire Pressure Front: 150kPa
Raer: 150kPa
Starting system Electric start
Wheelbase 1950±50mm
Battery 12V32Ah
Max. Turning radius ≤3500mm
Ground clearance 170±10mm
Rated load 400kg
Brake Control Mode Drum
Rim type Front: iron wheelhub(5.5*10)
Rear: iron wheel hub(8.0*10)
Tire size Front: 22*8-10
Rear: 22*10-10
Transmission mode Shaft drive
Fuel tank capacity 9.5L
Gradeability ≤25°
Lubrication method Pressure splash lubrication
Lubricating oil grade SF 15W/40(GB 11121-2006)
Pston swept volume 275ml
Max. Power and speed 12kW(6500(1±1.5%)r/min)
Min. No load stable speed 1500r/min
Fuel grade 92#
Engine model 174MN-4A
Engine type Single cylinder, four stroke, water-cooled, inclined, lower cam
Bore*stroke 74.0×64.0mm
max. Torque and speed 20N·m(4500(1±1.5%)r/min)
Compression ratio 10.0:1
min. Fuel consumption rate 354g/kW·h
Clutch type Manual oil bath multi chip type

FAQ
1. who are we?We are based in Chongqing, China, start from 2015,sell to Eastern Europe(30.00%),Domestic Market(20.00%),Southeast Asia(12.00%),Africa(12.00%),South America(10.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(2.50%),South Asia(2.50%),Eastern Asia(1.00%),Western Europe(1.00%). There are total about 501-1000 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Gasoline engine,Gasoline water pump,Gasoline Power tiller,Diesel Power Tiller,Gasoline Generator,ATV and UTV4. why should you buy from us not from other suppliers?20 years' focusing makes AEROBS being leading well-known brand. We have a huge factory and our own technical research center. Not only manufacturing but also creation will enable us to do more and more for you5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:null;Accepted Payment Type: T/T,L/C,Credit Card,Western Union;Language Spoken:English,Chinese,Russian, French, Spanish
