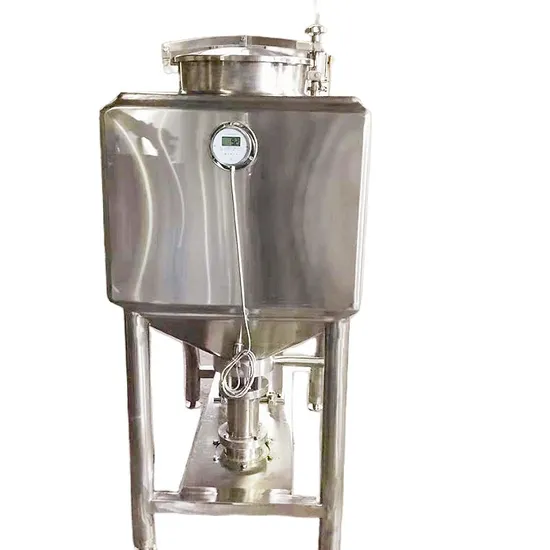

High Shear Mixing Tanks Emulsification Tank

Product Description

High Shear Mixing Tanks Emulsification Tank High shear mixing Mixing speed: 2800rpm Made of stainless steel Applications This vacuum emulsion mixer is ideal for use in industries such as food, pharmaceuticals, cosmetics, and chemical materials.
Advantages The high shear mixing tanks utilize three kinds of mixer on the same shaft. Additionally, our vacuum emulsion mixer features hydraulic lifting and descending method for easy cover opening. The high-speed homogenizing mixer has a rotational speed range of 0 to 3500r/min, controlled by a frequency control system. The low-speed scraper mixer's rotational speed varies from 0 to 40r/min, also controlled by a frequency control system. The homogenizer utilizes the high-shear jet type emulsifying mixer, while the low-speed scraper mixer is tightly attached to the bottom and wall of the pan. Vacuum is used to inhale powdered materials, preventing dust from floating in the air. The entire working procedure is conducted in a vacuum state, preventing materials from producing bubbles after high-speed agitation and meeting hygiene and asepsis requirements. For more information, please contact Wenzhou Longwan Wanyuan Food Machinery Factory.
High Shear Mixing Tanks The high shear mixing tanks offered by Wenzhou Longwan Wanyuan Food Machinery Factory are designed to meet the needs of ointment and cream production. With advanced features and superior quality, these tanks are the most ideal choice in China.
Features: Sanitary Grade Mirror Polishing: The internal surface of our vacuum emulsion mixer undergoes the 300EMSH sanitary grade mirror polishing process, ensuring stability and reliability of the parts. High-Quality Components: The pushbutton and frequency converter are sourced from reputable Japanese companies, while the electrical control system is purchased from Siemens Company. Benefits: Enhanced Stability: The mirror polishing process guarantees the stability of the parts, resulting in efficient and reliable performance. Premium Quality: The high-quality components from renowned companies ensure durability and longevity of the mixing tanks. Advanced Technology: Considered as the most advanced equipment in China, these mixing tanks offer superior performance for ointment and cream production. Choose the high shear mixing tanks from Wenzhou Longwan Wanyuan Food Machinery Factory for exceptional quality and reliable performance. Experience the benefits of advanced technology in your production process.
high shear mixing tanks specification

Model	Effective Capacity	Emulsion Motor		Stirring Motor		Overall Dimension				Total Power
		kW	r/min	kW	r/min	Length	Width	Height	Overall Height
GHR-20	20	2.2	0-3500	0.37	0-40	1800	1600	1850	2700	5
GHR-50	50	3	0-3500	0.75	0-40	2700	2000	2015	2700	7
DYZRJ-100	100	3	0-3500	1.5	0-40	2920	2120	2200	3000	10
GHR-150	150	4	0-3500	1.5	0-40	3110	2120	2200	3100	11
GHR-200	200	5.5	0-3500	1.5	0-40	3150	2200	2200	3100	12
GHR-350	350	7.5	0-3500	2.2	0-40	3650	2650	2550	3600	17
GHR-500	500	7.5	0-3500	2.2	0-40	3970	2800	2700	3950	19
GHR-750	750	11	0-3500	4	0-40	3780	30503200	3050	4380	24
GHR-1000	1000	15	0-3500	4	0-40	3900	3400	3150	4550	29
GHR-1500	1500	18.5	0-3500	7.5	0-40	4000	4100	3750	5650	42
GHR-2000	2000	22	0-3500	7.5	0-40	4850	4300	3600	Without lifting	46
