Kernel Oil Expeller, Soybean Oil Press with Press Filter

Product Description

Product Description

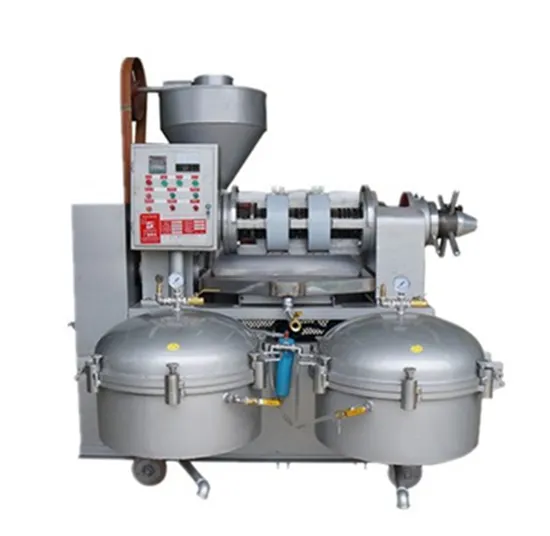

YZLXQ120-8 sunflower oil press machine
Capacity 200-250kg/h
Good for multi-seeds such as peanut , sunflower , soybean etc.
Jessica wu

Model number	YZLXQ120
Processing capacity (t/24h)	≥6.5
Oil content of dry cakes (%)	≤7.6
Power required (K.W)	15
Filter power(k.W)	1.5
Electric heating power(k.W)	3
Size(mm)(L*W*H)	2120*1610*2000
Spiral axes rotate speed (r/min)	32~40
Weight (KG)	1100

The series YZLXQ120 (-8,-9) automatic temperature control precision filtration combined oil presses are new products developed on the basis of single machine to meet the market demands.
The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine's abrasion.
When the squeezing is suspended, the temperature can be maintained by this system. In the meanwhile, this machine was added with filtration function.
The crude oil flowing out from the press cage will directly be filtrated by the air pressure filtration machine.
The air pressure filtration machine is new filtration equipment.It makes use of the compressed air as filtration force.
The ability is strong.
It overcome the shortage of the small filtration force of the vacuum filtration machine, can achieve precise result.
The structure of thisoil press is compact, only requires a small working place and saves labor investment. It is ideal equipment for medium or small oil refinery and enterprise to processing edible oil.



Company Profile

Guangxin Automatic Combined Oil Press with Air pressure Oil filter series in tanzania

Our Advantages

1. The oil making machine made by Guangxin is widely used in oil refinery and rural enterprises for squeezing oil from rapeseed, cottonseed, peanut, soybean, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
2. It has advantages of small investment, easy operating, high efficiency and strong compatibility, etc. Users could obtain good economic benefit from it.
1. Healthy! Physical squeezing craft maximally keeps the nutrients, such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low. The oil plants can be squeezed dry by only one time by using hot pressing.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. High economic efficiency! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine. After Sales Service

We are a integrated enterprise of manufacturer and trading company. The quality, delivery date and other details can be safely guaranteed. Packaging & Shipping

Feel free to contact with Jessica wu
