Basic Info.
Harvesting Machinery Type
Fishing Auxiliary Machinery
Fishing Method
Whaling Machinery
Aquatic Products Processing Machinery
Finished processing machinery
Fishing Gear Winch Type
Fishing Machinery
Fishing Auxiliary Machinery Type
Auxiliary Winch
Finished processing machinery
Fishmeal and Fish Oil Processing Machinery
Oxygen Capacity (Kg/H)
More Than 2.4kg/H
Size (L*H*W)(mm)
1850*1520*440
Transport Package
Plywood Case/Woodem Box
Specification
1850*1520*440
Production Capacity
100000
Product Description

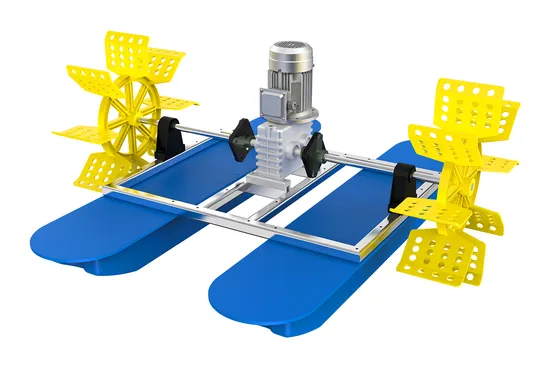

Water Wheel Pond Paddle Aerator 6PCS Impellers with 1.5kw 380V Permanent Motor for Seawater freshwater Shrimp Farming Fish Pond Farming Aquiculture
Model | Impeller | Power(Kw) | Voltage(V) | Current(A) | Oxygen capacity (kg/h) | Power efficiency (kg/kw.h) | overall weight(kg) | Size (L*H*W)(mm) | Loading water surface(acre) |
0.75D | 3 | 0.75 | 220 | 5.4 | ≥ 1.1 | ≥1.25 | 38 | 1370*1320*440 | 2-5 |
0.75 | 3 | 0.75 | 380 | 2.2 | ≥ 1.1 | ≥1.25 | 36 | 1300*1320*440 | 2-5 |
1.1 | 4 | 1.1 | 380 | 2.9 | ≥ 1.4 | ≥1.25 | 46 | 1560*1520*440 | 3-6 |
1.5 | 5 | 1.5 | 380 | 3.7 | ≥ 1.9 | ≥1.25 | 56 | 1650*1520*440 | 5-7 |
1.5 | 6 | 1.5 | 380 | 4.4 | ≥ 2.4 | ≥1.25 | 58 | 1850*1520*440 | 5-8 |
Products Functions
(1) Fish Pond Aeration can control fish floating head dead fish, prevent flooding, and create conditions for high-density breeding to provide high yield and stability.
(2) Purity water quality, explode exhaust gas, reduce fish diseases and promote fish growth.
(3) Stir the water and adjust the water temperature of the upper and the lower layers.
Advantages The aerator adopts a special transmission structure, one-stage transmission, low mechanical loss, and greatly improves energy-saving efficiency. Stainless steel submersible motor design, beautiful appearance and corrosion resistance, not to worry about the motor turning into the pond and water (waterproof motor) No gear box, no need to worry about oil leakage, no pollution, low maintenance cost, more convenient disassembly The high-speed motor digs deep, the splash is high and thin, and the thrust is strong, instantly increasing the amount of dissolved oxygen Installation fasteners are made of stainless steel and nylon, anti-rust and anti-oxidation Customers can choose 3-6PCS Impellers at will according to the breeding needs The equipment is easy to install and transport, greatly reducing labor and maintenance costs 3. Application
3PCS Impellers Water Wheel Pond Paddle Aerator with 0.75kw Permanent Motor can be used in both seawater and freshwater. Such as Aquiculture industry like Shrimp Farming and Fish Pond Farming.
4.Products Details
5.Related Products
6.Taicheng Factory and Workshop
7.Showroom
8.Certificate
