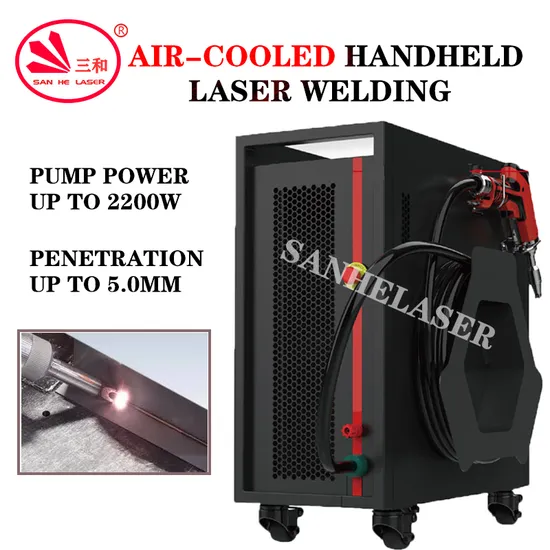

Portable Handheld Laser Welding Machine, Air-Cooled, Light Weight in Korea
| US$6,437.00-7,630.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
3HE-MF1200W
Application
Automotive Industry, Manufacturing Industry, Hardware Manufacturing
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Voltage
220V/50/60Hz
Weld Metal Thickness
0.5-4mm
Laser Power
1200W
Cooling Method
Industrial Air Cooling
Laser Type
Fiber
Gross Weight
41kg
Power Consumption
4.6 Kwh Per Hour
Transport Package
Plywood
Specification
510*560*270
Trademark
SANHE
Origin
China
HS Code
8515809090
Production Capacity
200set/Month
Packaging & Delivery
Package Size
510.00cm * 270.00cm * 560.00cm
Package Gross Weight
41.000kg
Product Description
Product DescriptionDetailed Photos
Product Parameters
| Model | MF-1200W | ||||||
| Max output power | 1200W | ||||||
| Pump power | 2200W | ||||||
| Product name | Good Performance Air Cooled Fiber Laser Welder 1200w Handheld Air Cooling Laser Welding Machine for Price. | ||||||
| Output fiber length | 1080( ± 10nm) | ||||||
| Welding materials | Stainless steel | galvanized sheet | carbon steel | aluminum | brass | Copper | |
| Single side penetration | 4mm | 4mm | 4mm | 4mm | 3mm | 2mm | |
| Double-sided penetration | 8mm | 8mm | 8mm | 8mm | 6mm | 4mm | |
| Voltage | 220V/24A | ||||||
| Indicator light | Red Light | ||||||
| Cooling method | Air cooling | ||||||
| Working model | Continuous/Modulation | ||||||
| Working environment | -10-40ºC | ||||||
| Swing width and frequency | 4mm/120HZ | ||||||
| holding head | 700g | ||||||
Sample display
FAQ
Q:What materials can be welded by laser welding machine?
A:Our laser welding machine can weld on die steel, carbon steel, stainless steel, alloy steel, copper and copper alloys and other materials. If you are not sure whether your material can be welded, please contact us and we will test it for you for free.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working thickness, then I will recommend you the most suitable machine for you.
Q:Can you arrange the shipment for me ?
A:We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves
