US$685.00-821.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Belonging
Agriculture Machine
Transport Package
Wooden Package
Production Capacity
500sets/Year
Product Description
Product Description
Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furow the land during operalion. Themounted disc plow is especially suitable for land which have weeds, stems and frictional soll with small brick etc.

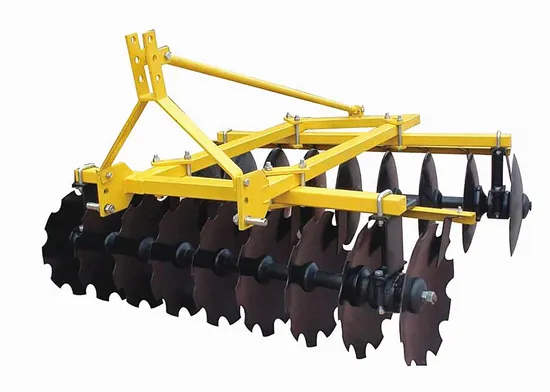

Mounted middle duty disc harrow is used in open field working for the superficial ploughing,for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains.It can be used in light and medium soil.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters
| Model | 1BQDX-1.3 | 1BQDX-1.6 | 1BQDX-2.0 | 1BQDX-2.4 | 1BQDX-2.8 | 1BQDX-3.0 |
| Width of cut (mm) | 1300 | 1600 | 2000 | 2400 | 2800 | 3000 |
| Depth of cut (mm) | 140 |
| Dia of disc(mm) | 460 |
| Qty of disc | 16 | 20 | 24 | 28 | 32 | 36 |
| Weight (kg) | 330 | 390 | 460 | 560 | 600 | 650 |
| Tractor power (hp) | 35-40 | 40-45 | 50-60 | 60-75 | 75-85 | 85-100 |
| Mounted cat | Three point linkage |
