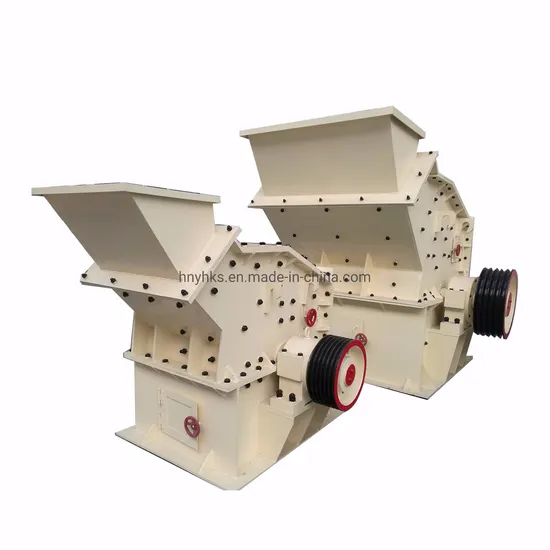

Pcx Series Lime Stone, Kaolin Ore, Quartz, Marble Crushing Impact Fine Crusher

Product Description

PCX series lime stone, kaolin ore, quartz, marble
crushing impact fine crusher
Application of high efficienct impact fine crusher:
High efficiency impact fine crusher is used for fine crushing medium hard materials in concrete industry, such as limestone, plaster, clinker, mixed material, calcium phosphide, dolomite, and pearl ore, etc. It is also applicable to building material, fertilizer, mine and fireproofing material industries.
Working Principle of high efficienct impact fine crusher:
The material is crushed primarily in the first crushing chamber by the high speed moving rotator against the hammer, and then screwed into the secondary chamber for fine crushing hereafter material being discharged.
Features and Advantages of high efficienct impact fine crusher:
1. Super-fineness crushing capability: The new particle size adjusting mechanism guarantees 85% of the particles controlled within 3mm;
2. High-efficient and energy-saving: 40% power consumption reduced at equivalent output;
3. Extra long life: hammer heads are made of new type of high quality alloy materials with multiple elements and can be turned for use thus to prolong the service life by 4 times.
4. Great crushing ratio
5. Easy Maintenance: The rear cover of the upper machine frame can be hydraulically (hand)-opened to make the maintenance much easier.
Main Technical Parameters:

Model	feeding size(mm)	discharging size(mm)	Capacity (t/h)	Power (kw)	Weight (t)
PCX800×300	≤60	≤5(96%)	20-25	37	2.5
PCX800×600	≤60	≤5(94%)	35-50	45	4.7
PCX800×800	≤70	≤5(92%)	40-60	75	6.5
PCX1000×1000	≤80	≤5(91%)	60-90	90	8.8
PCX1000×1200	≤90	≤5(88%)	75-110	110	13.6
PCX1300×1200	≤100	≤5(86%)	120-145	160	19.5
PCX1300×1400	≤120	≤5(85%)	145-180	180	26
