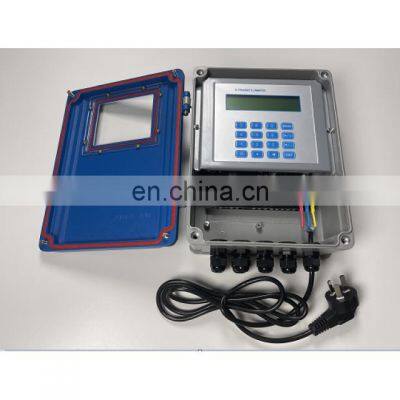

Taijia diesel fuel flow meter flowmeter Dual Channel Ultrasonic water flowmeter Flow Meter

Product Description

Product Description
Product DescriptionIntroductionWelcome to choose to use the excellent performance, multi-function,using a number of patented technology ultrasonic flowmeter. Ultrasonic flowmeter supports both mono and dual channel, using the latest 32-bit processor Cortex-M4 as the CPU, with the advantages of block computing, floating point computing capability; ultrasonic flowmeter is suitable for continuous measurement of the flow and heat of most clean and uniform liquids without large concentrations of suspended particles or gases in industrial environments.Specificationustration of a two-channel insert installationProgramPerformance, ParametersAccuracy1.0%Repeatability0.2%Flowrate range0.03~±7m/s.Measurement PrincipleUltrasonic propagation time difference principle,32-bit CPU operation,8-byte double floating point operation.Measurement cycle50ms(20times per second with 64sets of data collected per cycle)Display2x10 or 4x8 backlight type Chinese character LCD with low power consumption for segment code LCD.Operations4×4 light touch key board/4-key input.Input2x2wire PT1000 platinum resistance input circuit for heat meteringOutputCurrent signal:4~20mA, impedance 0~500ohm, floating, accuracy 0.1%FS.Pulse signals: positive, negative, net flow and heat accumulation pulse OCT output Data interface: standard isolated RS-485interfaceOther functionsMemorize cumulative daily, monthly, and annual traffic.Fault self-diagnosis function; network working method, etcSensorsExternal clamping type: Small standard S1 type, suitable for pipe diameter DN15 to DN100mm Medium standard M1 type for pipediameters DN50 to DN700mm Large standard L1 type for pipe diameters DN300 to DN6000mmInsertion type: measuring pipe materials not limited (weldable, non- weldable are available) for pipe diameter DN80 or above.Standard pipe section type: applicable to pipe diameter DN10-DN400,The Whole Machine Measurement Accuracy±0.5%.Cable lengthCan be extended to 100m (please contact the manufacturer for more than this length)Lining materialAll textured dense pipes such as steel, stainless steel, cast iron, rigid plastic, cement pipes, etc., are allowed to have alining.Inner diameter10mm-6000mmLength of straight pipe sectionUp stream≥10D,down stream≥5D,and≥30D from the pump outlet.TypeWater, seawater, acid and alkaline liquids, food oil, steam, coal, diesel, crudeoil,alcohol, beer, and other homogeneous liquids that can transmitultrasoundTurbidity≤10,000ppm,and small bubble content.Temperature150ºCFlow directionThe forward and reverse flow can be measured separately, and the net flow can be measuredTemperatureMain machine:-10-70ºC (please contact the manufacturer for more than this temperature range requirement)Probe:-30ºC~150ºCHumidityMain frame:85%RHProbe: submersible, water depth≤3mPower supplyOrdinary version: DC24V, AC220V power supply mode.Low power version:3.6v lithium battery /5~9V(or 9~36V).Related productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.FAQ1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all product5. Service express company:TNT/DHL/FedEX.
