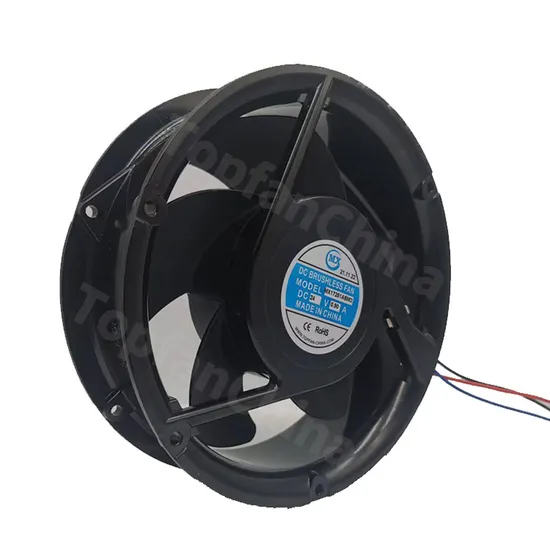

High Speed 353cfm Electric Motor 172mm Sunon 109e1724c501 17251 Aluminium Alloy DC Fan

Product Description

172X172X51 Computer Case Cooling Fans Cooler DC Motor Fan

No	Modle number	MX17251ABM2(Tempetature-30ºC--+80ºC )
1	Dimension	172X172X51 mm
2	Voltage	24v dc fan
3	Current	1.65 A
4	Speed	5500 RPM ± 10%
5	Max.air flow	353 CFM
6	Bearing Type	Ball Bearing
	Noise	60dBA
7	Lead wire	2 wire
8	Connector / teminal	JST * mm 4pin
9	Life expectancy	50000 hours ( at room temperature 25ºC)
10	Lead time	MOQ:100PCS, need 12days after received full payment from customer MOQ:6000PCS, need 20days after received full payment from customer
11	Usage	Server, computer case, oven, fireplace, air conditioner, and etc.

The paramenters may be different from yours, don't worry, more than 20 years experience experts team provide customize serivece according to your requirements.
Product applications At present, the silent, low power consumption, super large air volume, high wind pressure, high power, large size waterproof fan designed and developed by our company are mainly aimed at: humidification, telecommunications power supply, communication chassis, industrial control equipment, freezer, refrigerator, inverter, military industry Products, diving equipment, boat parts, inverter power supplies, industrial power supplies, industrial equipment and other industries and products are designed to greatly meet the needs of customers for waterproof cooling fans. In response to the needs of customers for waterproof work, the company specially established the research and development of waterproof fans. At present, the specifications of waterproof fans are complete. Various sizes from 20MM to 254MM. The protection level can reach IP68. It can completely drain the mold and make the fan work in the water. The needs of our customers. For air purification, dust collectors, large industrial equipment, base stations, ventilation systems, etc., we have successively developed Ф100MM, Ф120MM, Ф133MM, Ф140MM, Ф145MM, Φ150MM, Φ3 to work in. Our waterproof treatment adopts the motor fully enclosed filling and pouring technology. Can isolate water, oil, acid and alkali substances from the electronic components of the motor and ensure that the fan can work safely in such harsh environments. In response to customer requirements for fans with large air volume, strong suction, and high air pressure, axial flow such as 40*28MM, 60*38MM, 80*38MM, 92*38MM, 120*38MM, and 254*89MM have been developed. Aiming at the emerging respiratory equipment industry, from small mask fans to large respiratory equipment, our company has launched blowers 2006,3007,3010,3507,3510,4010,4015,5010,5015,5025,6015,6025,6028, 7015, 7025, 7530, 8137, 9733, 12032 and other blowers were put on the market. In addition, there are also centrifugal fans 54x45, 54x50mm used in vehicle equipment, and 85X24MM, 85X38MM, 77X54MM for ventilators, etc.
