Long Range Surveillance IR Thermal Imaging Camera Infrared Camera 80~800mm

Product Description

Long Range Surveillance IR Thermal Imaging Camera Infrared Camera 80~800mm

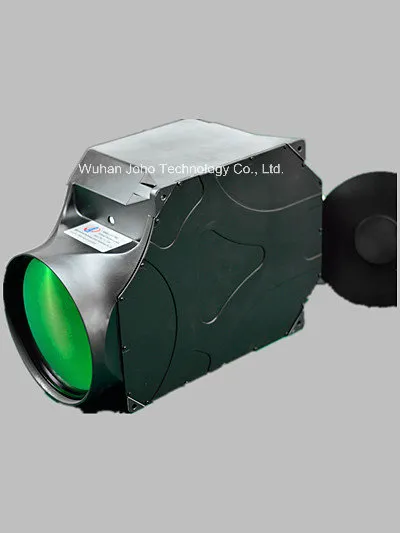

JH640-80080 is equipped with high resolution 640x512 MWIR cooled sensor and continuous zoom 80~800mm focal length lens. It continuously zooms between 0.55deg narrow field of view and a 5.5 deg wide field of view. It offers excellent situational awareness but also the possibility to zoom-in, and see more detail, once a target has been detected. It is extremely compact, easy to integrate into air-borne, ship-borne and vehicle-borne EO/IR imaging and tracking camera system.
Features 800mm lens ensure extremely long-range detection
Continuous zoom optics satisfies multi-mission
Compact design easy to integrated into EO/IR camera system
Hermetically sealed housing for independant observation purpose.
Easy operation
Technical Specifications

Detector Parameters
Detector type	Cooled FPA HgCdTe
Pixels	640×512, 15μm×15μm
Spectral Range	3.7μm~4.8μm
NETD	≤25mK
Cooling	≤8min at 20ºC
Optics Parameters
Focus Length	80~800mm continuous zoom F#:4
FOV	6.87°×5.50°~0.69°×0.55°
Image Presentation
Video output	PAL/NTSC
Frame frequency	25Hz/30Hz
Brightness & Contrast	Auto/Manual
Polarity	BH&WH
Interfaces
Command and control	RS422 or RS232
Power Parameters
Power supply	24~30VDC
Power consumption	≤25w
Environmental Parameters
Operating temperature	-40ºC~+60ºC
Storage temperature	-50ºC~+70ºC
Vibration proof	GJB150.16-86
Shock proof	GJB 150.18-96
High temperature test	GJB150.3-86
Low temperature test	GJB150.4-86
Physical Parameters
Weight	≤20kg
Size	460mm(L)*230mm(lens diameter)*325mm(width)
Color	oxide black
Range Performance
Detection range	20km (2.3m*2.3m vehicle)
