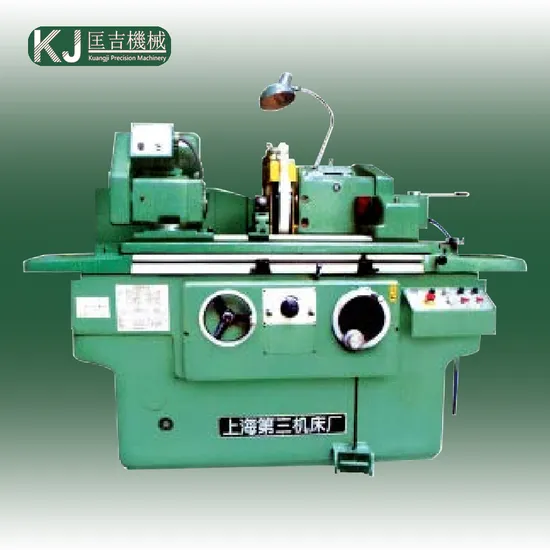

Ma1420e/750 Heavy Duty Universal Cylindrical Grinding Machine Flat Surface Cutter Grinder 750 mm
| US$13,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MA1420E/750
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case Packing
Specification
2700x1420x1600 mm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Main Specifications and Technical Parameter | ||
| ltem | MA1420E | MA1420E/750 |
| Grinding diameters | 8~200 mm | 8~200 mm |
| Grinding bores | 13~80 mm | 13~80 mm |
| Max grinding length | 500 mm | 750 mm |
| Max grinding depth | 125 mm | 125 mm |
| Max trabel of table | 600 mm | 800 mm |
| Hydraulic traverse speeds | 0.1~4 m/min | 0.1~4 m/min |
| Swivel range of the table | -5°~+9° | -3°~+9° |
| Max peripheral speed of grinding wheel | 37 m/s | 37 m/s |
| Wheel dimensions | 300x40x127 | 300x40x127 |
| Speeds of headstock spindle | 60,85,120,170,230,460 r/min | 60,85,120,170,230,460 r/min |
| Coolant pump drive motor | 8 KVA | 8 KVA |
| Overall dimensions(LxWxH) | 2000x1420x1600 mm | 2700x1420x1600 mm |
| Weight of machine | 2100 kg | 2600 kg |
| Work precision | ||
| ltem | MA1420E | MA1420E/750 |
| Ex Ternal | 1.5 um | 1.5 um |
| In Ternal | 2.5 um | 2.5 μm |
| Cylindricity | 5 um | 5 um |
| Ex Surface | Ras0.32 um | Ras0.32 um |
| In Surface | Ras0.63 um | Ras0.63 um |
| Main accessories | ||
| 1 | Coolant tank | 1 set |
| 2 | Open center rest | 1 set |
| 3 | Grinding wheel dresser | 1 set |
| 4 | Grinding wheel clamp | 2 sets |
| 5 | Grinding wheel balancer | 1 pc |
| 6 | Carbiede-tipped center | 2 pcs |
| 7 | Half center | 2 pcs |
| 8 | Chuck | 1 set |
| 9 | Hexagon socket wrench | 1 pc |
| 10 | Vblet | 2 pcs |
| 11 | Support iron | 3 pcs |
| 12 | Dismountingnut | 1 pc |
| 13 | Three jaw chuck | 1 set |
| 14 | Closed center rest | 1 set |
| 15 | Grinding wheel arbors for internal grinding | 4 sets |
