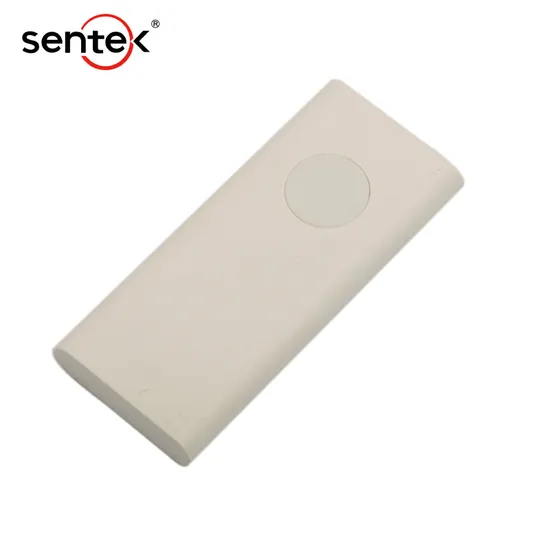

Wireless Door Alarm Ultra-Thin Door or Window Contact Sensor
Basic Info.
Model NO.
WC12-G
Type
Anti-Theft Alarm
Application
Home
Usage
Door, Personal, Window, Security, Safety
Certification
FCC
Product Name
Wireless Door Alarm Ultra-Thin Door or Window Cont
Color
White, Brown, Tan
Weight
0.09 Oz. (27g) (Including Battery and Magnet)
Housing Material
ABS Plastic Case
Transport Package
10PCS/Box, 500PCS/Carton
Specification
Wireless Door Alarm Ultra-Thin Wireless Sensor
Trademark
SENTEK
Origin
Ningbo China
HS Code
8531901000
Production Capacity
10000PCS/Month
Product Description
Specification:| Wireless Signal Range | 350 ft., open air, with compatible Wireless Alarm Control Panel | |||
| Code Outputs | Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery | |||
| Transmitter Frequency | 345.000 MHz | 319.508 MHz | 433.920 MHz | crystal controlled or other frequency |
| Transmitter Frequency Tolerance | ± 15 kHz | ± 10 kHz | ± 15 kHz | |
| Transmitter Bandwidth | 24 kHz | 24 kHz | 24 kHz | |
| Modulation Type | Amplitude Shift Keying-On/Off Keying (ASK-OOK) | |||
| Unique ID Codes | Over one (1) million different code combinations | |||
| Supervisory Interval | 70 minutes | |||
| Peak Field Strength | Typical 16,000 uV/m at 3m | |||
| Reed Switch Magnetic Sensitivity | 10 to 15 amp turns | |||
| Reed Sensitivity | 0.625 in. (1.59 cm) minimum gap, 1 in. (25 cm) typical | |||
| Magnet Type | Rare earth | |||
| Magnet Dimensions (LxWxH) | 1.1 x 0.393 x 0.28 in. (2.8 x 1.0 x 0.72 cm) with VHB tape | |||
| Sensor Dimensions (LxWxH) | 2.28 x 1.01 x 0.29 in. (5.8 x 2.56 x 0.74 cm) with VHB tape | |||
| Housing Material | ABS plastic | |||
| Color | White, Tan or Brown available | |||
| Operating Temperature | 32° to 120°F (0° to 49°C) | |||
| Relative Humidity | 5-95% Non-Condensing | |||
| Battery (included) | One (1) CR2032 | |||
| Battery life | 1 year (on normal condition) | |||
| Regulatory Listing | FCC Part 15 | |||
| Warranty | Two (2) years(limited) | |||
| Included Accessories | Two (2) Phillip's flat-head screws, one (1) two-pin connector with a 12" flying 2-wire lead, adhesive strip | |||
| Weight | 0.09 oz. (27 g) (including battery & magnet) | |||
Models available:
WC12(B)-H: compatible with Honeywell and 2GIG wireless panel (345MHz)
WC12(B)-2: compatible with 2GIG wireless panel (345MHz)
WC12(B)-G: compatible with GE Intelogix wireless panel (319.508MHz)
WC12(B)-D: compatible with DSC wireless panel (433.92MHz)
