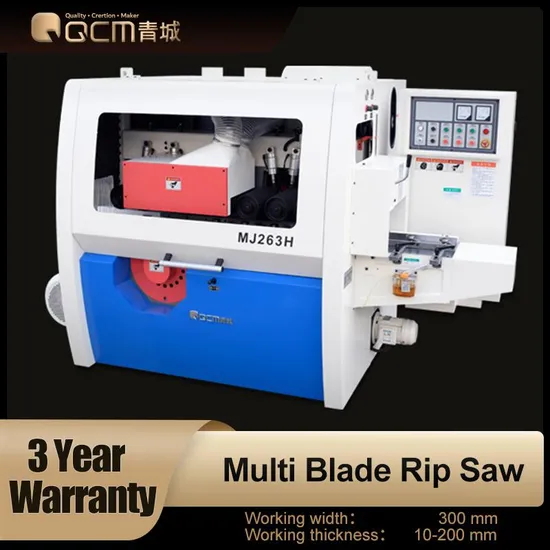

MJ263H Woodworking Machinery Rip Saw Automatic Multi-Blade Rip Saw

Product Description

MJ263H Woodworking Machinery Rip Saw Automatic Multi-Blade Rip Saw
Specifications:

Max.working width	300	mm
Working thickness	10-180, 45-180(for right and left)	mm
Min. working length (single / continuous)	635/450	mm
Bottom cutter dia.	\	mm
Right & left vertical cutter dia.	\	mm
Motor for bottom spindle	\	mm
Motor for right & left vertical spindle	\	kW\HP
Motor for up horizontal spindle	\	kW\HP
Motor for left, right vertical spindle, upper horizontal spindle	\	kW\HP
Motor for left, right saw spindle	\	kW\HP
Saw spindle dia.	Φ50	mm
Saw spindle speed	4000	r/min
Planer spindle dia	\	mm
Planer spindle speed	\	r/min
Upper saw blade dia.	Φ250-Φ305	mm
Bottom saw blade dia.	Φ250-Φ305	mm
Feeding speed	4-18	m/min
Total power	64.5\86	kW\HP
Up saw spindle motor	30\40	kW\HP
Bottom saw spindle motor	30\40	kW\HP
Feeding motor	3\4	kW\HP
Rear auxiliary feeding motor	\	kW\HP
Lifting motor for upper and down saw spindle	2*0.37,0.5	kW\HP
Beem lifting motor	0.75\1	kW\HP
Saw spindle lifting motor	\	kW\HP
Air supply pressure	\	MPa
Suction hood dia.	3*Φ150	mm
Overall dimension	2950*1620*1770	mm
Weight	3300	KG

	1. ENTIRE CAST IRON Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard configuration.
	2. ANTI-REBOUND SAFETY DEVICE The anti-rebound safety device located on the infeed ensures operational safety.
	3. WEAR RESISTANCE GUIDE TRACK The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance.
	4. AUTOMATIC LUBRICATOR The automatic lubricator delivers frequent lubrication oil to the chain.
	5. DUST REMOVAL BRUSH The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.
	6. HIGH PRECISION SPINDLE All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
	7. PROFESSIONAL ELECTRICAL APPLIANCES Imported electrical products and appliances insure the whole machine run well with a stable performance.
	8. CAST IRON CHROMED FEED TABLE The entire Cast Iron - Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.
We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine
To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.
Customer Question and Answers:
1). What is your price term and payment term?
A:We offer FOB, CIF, CNF and EXW price.
TT or LC are both acceptable.
If we have available stock: 100% payment before delivery.
If no available stock: 30% deposit, balance payment paid before delivery.
Customized machines need 50% deposit.
2). Do you have stock? How long for delivery?
Regular machines always have ready stock.
If no ready stock or customized machine, it takes around 60days production.
3). How long is the warranty?
Most machine got 1 year warranty except some consumption spare, all spare is free for change within warranty period, in the condition that machine is running according to the manual book(saga got rights for explain).
4). How about Installation?
For complex machines, we will send our engineers to install and train.
Customers only need to supply for food and living as well as transport.
Some area may be served by our local agent. For commercial machines, we will do our best to offer installation guiding video.
5). Can we always buy the machine parts?
For the convenience of our customers, we keep all of our machine parts standard and all the same forever. You can always buy the parts at any time.
6). How you insure the safety during transportation?
We have mature experience for sea transport packing, for some irregular shape machine, we will do special fix and tight on container to avoid any risk.
