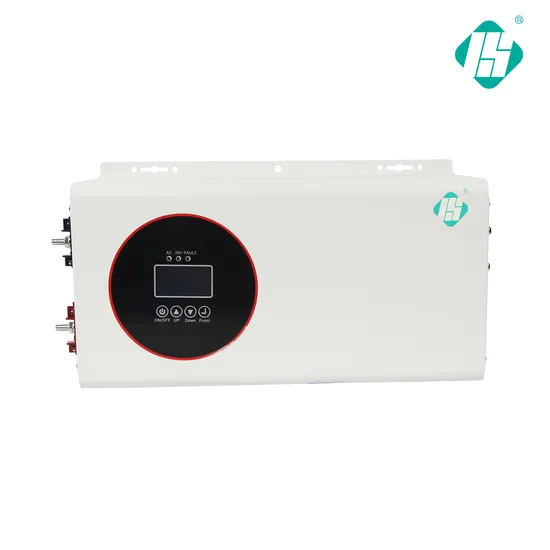

off Grid Solar Inverter 3000W 5000W Pure Sine Wave Inversor 5000W 48V 5kVA Solar Power Inverter 5kw for Home off Grid Solar Inverter

Product Description

Detailed Photos

Model No.	EN100	EN150	EN200	EN300	EN400	EN500	EN600
Rated Power	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW
Peack Power	3KW	4.5W	6KW	9KW	12KW	15KW	18KW
Battery Voltage	12V/24V	24V	24V/48V	48V	48V	48V	48V
AC Input
Phase	L+N+G
Input voltage	110V or 220V.110:85v to 138v,220v:170v to 275V
Input frequency	45HZ to 65HZ
AC Output
Output voltage	Inverter Mode:110V or 220v,+-5%,AC mode:110V or 220v,+-10%
Frequency range (AC Mode)	Automatic tracking
Frequency range (Inverter Mode)	50HZ/60HZ +-1%
Overload capapcity	Under AC mode: 100% to 110%:10 mins 110% to 130%:1 min over 130%:1s
	Under Inverter mode: 100% to 110%:30s 110% to 130%:10s over 130%:1s
Conversion time	less than 10ms for typical loads
Waveform	Pure sine wave
Effcienty	More than 85%
Working conditions
Operation temprature	0 to 40 degree Battery life decreases at ambient temperatures above 25 degrees Celsius
Operation humidity	less than 95% without condesing
Operation Altitude	<1000m(every increase of 100m,it will reduce output of 1%) max 5000m
Noise	less than 58dB the distance to machine is 1 meter
Management
Display	LCD+LED
Communication interface	RS232

Model No.	EN100	EN150	EN200	EN300	EN400	EN500	EN600
Rated Power	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW
Product Size	540*265*180				550*335*200645*370*250
Packing Size	580*320*240				645*370*250
Net Weight(KGS)	10.5	12.5	15	17.5	20	24	25
Gross Weight(KGS)	13	15	17.5	20	23	27	28

FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1KW-500KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
