Wdw-10kN 1ton Electronic Universal Tensile Strength Compression Bending Testing Machine Price

Wdw-10kN 1ton Electronic Universal Tensile Strength Compression Bending Testing Machine Price

US$3,500.00-5,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
WDW-100D
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Type
Tensile Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
PC
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
Motor
Function
Tensile, Compression, Bending
Transport Package
Exported Package
Trademark
Chengyu
Origin
China
HS Code
9024101000
Production Capacity
1000

Product Description

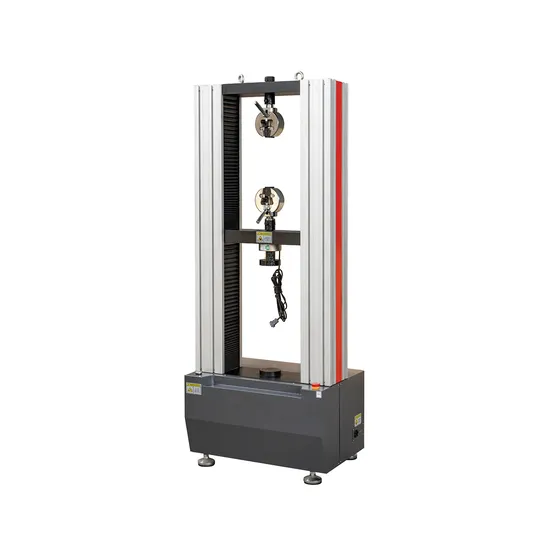

WDW-10kn Sensor Universal Tensile Strength Testing Machine
Product Description
Microcomputer-controlled electronic universal testing machine is mainly used for testing mechanical properties of various metals, non-metals and composite materials such as tensile, compression, bending, shear, stripping, tearing, etc. The system adopts microcomputer closed-loop control, which can realize constant velocity displacement, constant velocity stress, constant velocity strain and can be programmed.The design of the test machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise and high efficiency.The design of the auxiliary equipment is matched with the main machine. The structure is wedge-type translational and manual rotary clamping. The specimen is not subject to additional force.Convenient, reliable and non - slip clamping.
Product Parameters
Model
WDW-10/20kn/30kn/50kn/100kn
Max. Testing Force
10kN/20kn/30kn/50kn/100kn
Measure Range of Testing Force
2%-100%FS
Accuracy of Testing Force
Over ±1%
Discrimination of Displacement(mm)
0.001
Accuracy of Displacement Measure
Over ±1%
Tensile Volume(mm)
800
Compression Volume(mm)
800
Testing Volume(mm)
800
Range of Speed Control(mm/min)
0.01~300
Accuracy of Speed Control
Over ±1%
Accuracy of Deformation Value Display
Over ±1%
Weight (kg)
250

FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
