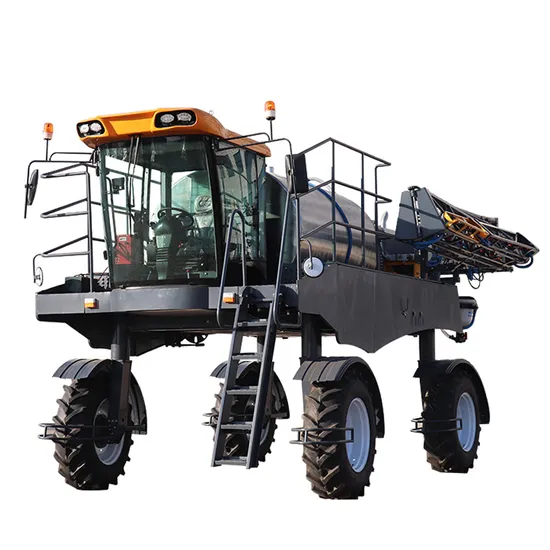

Farm Machinery Battery Mist Blower Crop Agriculture Drone Garden Machine Agricultural Boom Sprayer

Farm Machinery Battery Mist Blower Crop Agriculture Drone Garden Machine Agricultural Boom Sprayer

US$25,000.00-75,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
3WPZ-5000GX4
Installation
3 Point Linkage
Liquid Contained
Pesticide
Spraying Shape
Sector
Volume
5000L
Power Supply
Diesel Engine
Type
Self Propelled Boom Sprayer
Spray Angle
110 °
Nozzle Model
No.3
Transport Package
Standard Package for Export
Specification
7700mmx4200mmx3800mm
Trademark
LIXING
Origin
Heilongjiang
HS Code
8424490000
Production Capacity
200

Product Description

Model 3WPZ-4000GX2 3WPZ-5000GX4
Engine model FAW CA4DF3-14GAG3U 4-clinders turbocharged diesel engine FAW CA4DF3-14GAG3U 4-clinders turbocharged diesel engine
Power / speed 103kWt/140hp 2300r/min 103kWt/140hp 2300r/min
Displacement level Displacement is 4.75L China III Displacement is 4.75L China III
Bore and Stroke 110x125mm 110x125mm
Compression ratio 17:1 17:1
Gear CVT CVT
Drive mode Two-wheel drive,mechanical parking break Four-wheel drive,mechanical parking break
Steering mode Hydraulic steering Hydraulic steering
Tank stainless steel tank with partitions inside stainless steel tank with partitions inside
Tank capacity 4000L 5000L
Mixing way Jet mixing - premixer in the tank Jet mixing - premixer in the tank
Chemical mixer ARAG brand mixer ARAG brand mixer
Folding way Hydraulic folding Hydraulic folding
Boom 24M 27M
Ground clearance 1.5M 1.7M
Wheel track 2.8M(fixed) 2.6-3.2m
Walking speed Max 30km/h without working.
18km/h is working speed on the field for spraying
Max 30km/h without working.
18km/h is working speed on the field for spraying
Overall dimension 6700x4200x3600mm 7700x4200x3800mm
Weight 7700kg 8500kg
Pump type 6-cylinders diaphragm pump 6-cylinders diaphragm pump
Pump model MB6360 MB6360
Pump pressure 3.0Mpa 3.0Mpa
Pump flow 360L/min 360L/min
Pump speed ≤600r/min ≤600r/min
Spray height 0.5-3.0m 0.5-3.0m
Nozzle model F110-02, F110-03, F110-04, F110-05, F110-06 (5 nozzle holders) F110-02, F110-03, F110-04, F110-05, F110-06 (5 nozzle holders)
Nozzle flow 0.8L/min,1.2L/min,1.6L/min, 2.0L/min, 2.4L/min (5 nozzle holders) 0.8L/min,1.2L/min,1.6L/min, 2.0L/min, 2.4L/min (5 nozzle holders)
Distance between nozzles 50cm 50cm
Spray angle 110 ° 110 °
System work pressure 0.3-0.5Mpa 0.3-0.5Mpa
3 filtration system Tank inlet, pump inlet, nozzle Tank inlet, pump inlet, nozzle
Battery 12V/120AH 12V/120AH
Front tire model 14.9-26 12ply, load 2360kg (dia1280mm) 14.9-26 12ply, load 2360kg (dia1280mm)
Rear tire model 13.6-38 10ply, load 2215kg (dia1520mm) 14.9-26 12ply, load 2360kg (dia1280mm)
Cleaner water tank 22L 22L
Fuel tank capacity 150L 150L
Hydraulic oil tank capacity 90L 90L
Spray system Electric control,Premixer,Automatic spray system Electric control,Premixer,Automatic spray system
Main pump control switch Yes Yes
Mixer inside of tank Yes Yes
Tank cleaning system Yes Yes
Locks on lifting cylinders for the boom Yes Yes
N type support for lifting boom Yes Yes
Energy accumulator on boom Yes Yes
Air suspension and damping on boom Yes Yes
1"stainless steel spraying pipes Yes Yes
Working light on booms Yes Yes
Protection shields under all machine Yes Yes
Protectors on boom against hitting the ground Yes Yes
Wheels fenders ,Wheels deviders Yes Yes
Self filling with water Yes(gasoline water pump with hoses) Yes(gasoline water pump with hoses)
Backup camera Yes Yes
Cab air cooling Yes Yes
Cab heating Yes Yes
Cab filter Yes Yes
Door ventilation device Yes Yes
Rubber under the tank Yes Yes
Rubbers on booms for striking Yes Yes
Rubbers on position of boom Yes Yes
Hydraulic tank cooling fan Yes Yes
