Wt-HS High Speed Film Blowing Machine

Wt-HS High Speed Film Blowing Machine

US$12,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WT-HS
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
800mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Machine Weight
1t
Certification
CE, ISO9001:2008
Power
380V,60Hz
Transport Package
Wooden Pallet and Easy Film
Specification
4200 x 2000 x 4000mm
Trademark
WT
Origin
China
Production Capacity
1000

Product Description

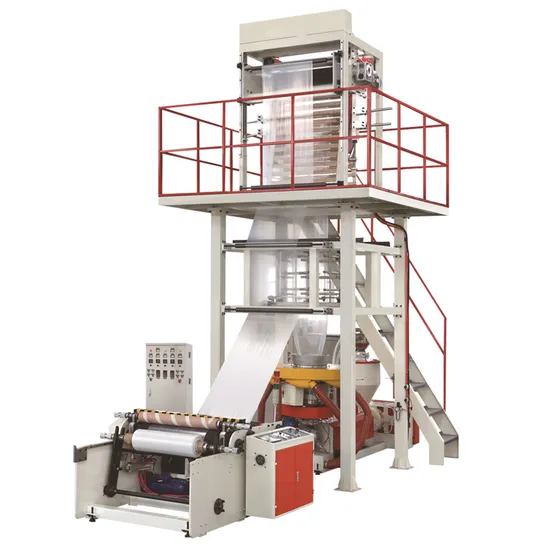

WT-HS High Speed Film Blowing Machine
Introduction:
This machine group is designed to absorb the advanced products of similar products at home and abroad. It adopts advanced technology such as hierarchical 360 ° die continuous rotating device, efficient cooling double air duct, double cross section double surface grinding machine equipment. The main group can produce LDPE, LLDPE, HDPE, and other raw materials for the composite film. With a good barrier, moisture, frost, oil, it can be widely used in light and heavy packaging, such as all kinds of fresh fruit, meat, fresh milk, liquid beverages and so on.
Technical Specifications:
Model WT-HS-700 WT-HS-900 WT-HS-1100 WT-HS-1300
Applicable Materials HDPE/LDPE/LLDPE
Width of Film 300-600 400-800 500-1000 600-1200
Thickness of Film 0.08-0.10 0.008-0.10 0.01-0.10 0.01-0.10
Max. Extrusion Output HDPE:60kg/h HDPE:80kg/h HDPE:100kg/h HDPE:120kg/h
LDPE:80kg/h LDPE:100kg/h LDPE:120kg/h LDPE:140kg/h
Extruder
Screw Diameter Φ50 Φ55 Φ60 Φ65
Screw L/D Ratio 30:1
Screw material SAC-645/38CRMOALA
Material of the delivery barrel SAC-645/38CRMOALA
Cooling of the delivery barrel 180w*3 180w*3 180w*4 180w*4
Power of the main motor 18.5kw 22kw 30kw 37kw
Temperature control point 3 3 3 4
Screen changer
Screen changing mode Manual screen changing
Temperature control point 1 1 1 1
Die head
Die diameter HDPE:Φ80mm HDPE:Φ100mm HDPE:Φ120mm HDPE:Φ150mm
LDPE:Φ150mm LDPE:Φ170mm LDPE:Φ220mm LDPE:Φ280mm
Cooling air ring type Double vents air ring
Air feeder type Air supply by the variable frequency motor
Power of the air feeder 3kw 4kw 5.5kw 7.5kw
Take-up unit
Width of the take-up roller 700 900 1100 1300
Take-up speed 10-90
Power of the take-up motor 1.1kw 1.5kw 1.5kw 1.5kw
Stabilizing ring 1UNIT
Wind-up device
Wind-up type Back-to-back automatic wind-up (single winding)
Effective width 600 800 1000 1200
Maximum winding diameter 800
Wind-up roller Φ300×700L Φ300×900L Φ300×1100L Φ300×1300L
Pneumatic winding shaft 2SETS
Floor size 5.5×2.1×5.5 6.0×2.3×6.0 6.3×2.6×6.5 6.6×2.8×6.8
Average power consumption 18kw/h 20kw/h 24kw/h 28kw/h
Device to be purchased Surface treating machine, knurling rolls, quick screen changing and back-to-back automatic wind-up (double-winding)

The data is subject to change without prior notice.
Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we use PE film for packing or pack it according to customers special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
