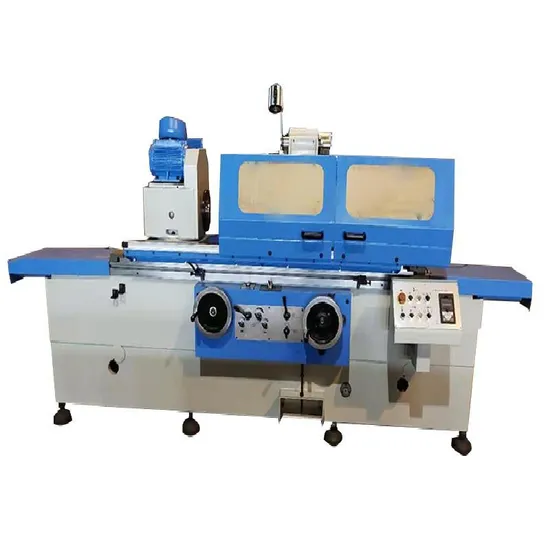

Hot Sale China Wheel Sumore Grinder Universal Cylindrical Cylinder Head Surface Grinding Machine

Product Description

Product Description
SP2516 Universal Cylindrical Grinding Machine Price 500/750mmPrecision Surface Grinding Machine Price / Surface Grinder Machine high precision magnetic chuck available manual surface grinder grinding machine Small manual surface grinder machine surface grinding machine Factory vertical surface grinders surface grinding machine manufacturers metal hydraulic surface grinder machine belongs to most popular economic manualsurface grinder machine. It is small in size and delicate in design. This surface grinder machine is made in China, but with same quality of Japan surface grinder. The main features are as below
Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Surface Grinder(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
Quick details
1.Max grinding diameter:200mm
2.Max grinding length:500*700mm
3.Max workpiece weight:50kg
4.Total power:5KW
Featurs/Advantages
1. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale.2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.9. Hydraulic or manual repositioning of grinding spindle stock.10.Guideways in x- and y-axis are precisely constructed and hand-polished.11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.

Model	SP2516x500/750mm
Max grinding diameter	200mm
Max grinding length	500/750mm
Max workpiece weight	50kgs
Circular degree	0.003mm
Longitudinal section inside diameter	0.005mm
Surface roughness	RA0.4
Handwheel feed	0.01mm/graduation; 1mm/revolution
Micro feeding	0.002mm
Internal grinding	13-80mm
Max grinding depth of inner bore	125mm
Total power	6kw
Wheel size (OD/W/ID)	400/50/203mm
Wheel wheel speed	35m/s
Headstock speed	63,125,250,500rpm
Spindle taper	MT4
Tailstock taper	MT4
Worktable swivel	9/8 degree
Weight	2500/2900kgs
Packing size	1970/2470x1570x1650mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
