Ck Series Gear Head Lathe Bench Lathe Turning Center From China CNC Lathe

Product Description

Product Description

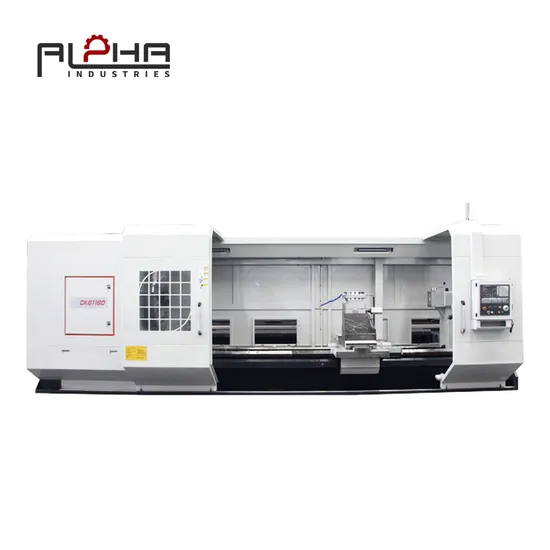

Fabricado En China CK SERIES CNC LATHE (755 GUIDE RAIL) CNC LATHE Machine Tools
Product Parameters

BasicInfo.
Model NO.	CK SERIES		Guide Rail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		Automatic Grade	Automatic
Setting Mode	1		Precision	HighPrecision
Certification	CE,ISO 9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model		CK61100	CK61125	CK61140	CK61160
Capacity	Swing over bed	1000mm	1250mm	1400mm	1600mm
	Swing overcross slide	610mm	850mm	1000mm	1200mm
	Distancebetween centers	1500-8000mm	1500-8000mm	1500-8000mm	1500-8000mm
	Guideway width	755mm	755mm	755mm	755mm
	Max.load capacity	6/10T	6/10T	6/10T	6/10T
Spindle	Spindle bore	130mm	130mm	130mm	130mm
	Spindle bore taper	Metric φ160/MT6	Metric φ160/MT6	Metric φ160/MT6	Metric φ160/MT6
	Spindle nosetype	A2-15	A2-15	A2-15	A2-15
	Spindle speedsteps	VF.4 steps	VF.4 steps	VF.4 steps	VF.4 steps
	Spindle speed range	4-300rpm	4-300rpm	4-300rpm	4-300rpm
	Chuck	φ1000mm 4-jawmanua	φ1000mm 4-jaw manual	φ1000mm 4-jaw manua	φ1000mm 4-jaw manual
Turret	Turret/tool post	NCturret 4 position	NC turret4 position	NC turret 4 position	NC turret 4 position
	Tool shank size	40×40mm	40×40mm	40×40mm	40×40mm
Feed	X axis travel	520mm	620mm	720mm	720mm
	Z axis travel	1350/2850/3850/4850/5850mm	1350/2850/3850/4850/5850mm	1350/2850/3850/4850/5850mm	1350/2850/3850/4850/5850mm
	Xaxis rapid traverse	4000mm/min	4000mm/min	4000mm/min	4000mm/min
	Zaxis rapid traverse	6000mm/min	6000mm/min	6000mm/min	6000mm/min
Tailstock	Tailstock quill diameter	φ160mm	φ160mm	φ160mm	φ160mm
	Taistock quilltaper	MT6	MT6	MT6	MT6
	Taistockquill travel	300mm	300mm	300mm	300mm
Motor	Main spindle motor	22KW	22KW	22KW	22KW
	Coolantpump motor	0.25KW	0.25KW	0.25KW	0.25KW
Dimension	WidthxHeight	2100×2100mm	2250×2300mm	2350×2450mmmm	2350×2600mm
	Length	5000/6500/7500/8500/9500mm	5000/6500/7500/8500/9500mm	5000/6500/7500/8500/9500mm	5000/6500/7500/8500/9500mm
Net weight		10.0/11.5/12.5/13.5/14.5T	11.0/12.5/13.5/14.5/15.5T	12.0/13.5/14.5/15.5/16.5T	13.0/14.5/15.5/16.5/17.5T

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
