Sand Gravel Dredge Pump Electric Gravel Pump for Mining

Product Description

Product Description G(GH) series gravel pump is a single-stage, single-suction, cantilever, horizontal centrifugal sand dredging pump.
It is mainly used for the transportation of strong abrasive materials, such as granular coal, sand, mud dredging, mineral, etc.
The pump is especially suitable for high flow, high concentration, high lift conditions, and has good cavitation performance and abrasion resistance.
Key Features
Bearing assembly - The large diameter shaft with famous brand bearings contributes to a long working life.
Casing-Easy to replace and maintain. Hard metal casing provides high operating pressure capabilities and a long working life.
Impeller-Hard metal and molded elastomer impellers are completely interchangeable with each other. High efficiency and high
head designs are also available. And the large particle is easy to pass through.
Product Parameters

Model	Power(KW)	Flow(m3/h)	Head(m)	n (r/min)	Efficiency (%)	NPSH(m)	The minimum size of the flow section (mm)
6/4D-G	60	300	45	1400	58	4	82
8/6E-G	120	500	37	1400	60	3.5	127
10/8F-G	260	950	43	1000	65	8	178
10/8S-G	560	950	43	1000	65	8	178
12/10G-G	600	1530	52	850	65	9	220
14/12G--G	600	1700	65	700	73	5	241
18/16T--G	1200	3300	40	500	72	6.3	254
20/18H-G	1400	4300	39	400	66	8	330
24/20H-G	1400	5600	57	400	70	7	380
8/6S-GH	560	880	78	1100	71	4.8	140
10/8S-GH	560	1300	70	950	72	5	180
12/10G-GH	600	2220	67	700	73	8.2	210
16/14TU-GH	1200	3050	59	500	72	6.5	230

Gravel Pump Performance Chart

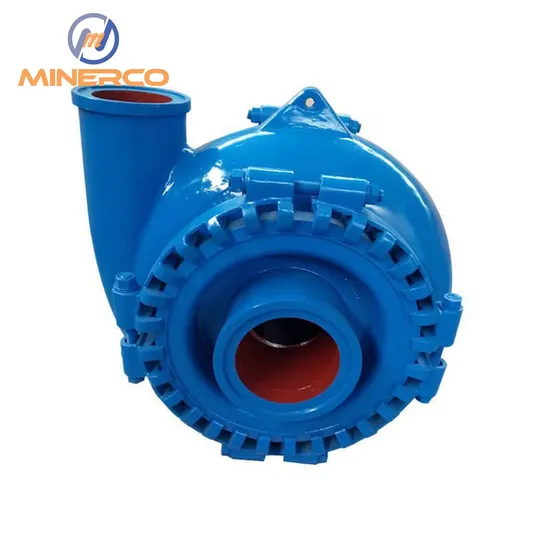

G/GH Gravel Pump show
Applications The G/GH gravel pump is widely utilized across various industrial sectors for its superior performance and durability:
Mining: Handling slurries with large solids and high abrasiveness. Dredging: River dredging, sand suction, and gravel dredging. Metallurgy: Transporting metal smelting slag. Power Plants: Coal washing and ash handling. Petrochemical: Handling corrosive fluids. Construction: Support in building material production.
Packaging & Shipping
We make sure the wood box is strong enough and the pump is bolted inside tightly.
For large pumps that are not fit for wood boxes, it shall be loaded and fasten bare in a container.
