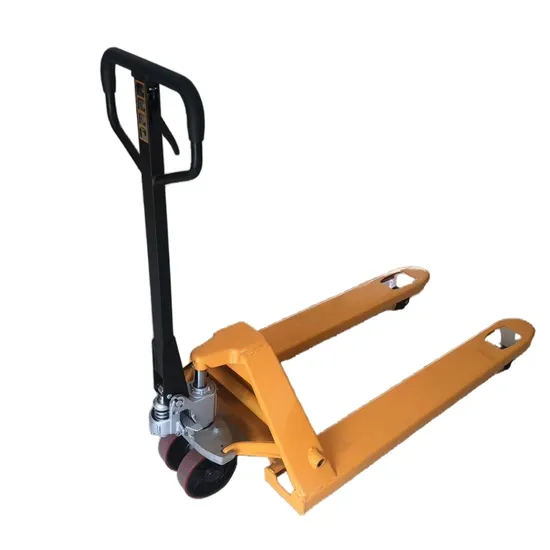

New Mini Electric Powered Power Battery Industrial Hydraulic Hand Manual Forklift Fork Lift Pallet Jack Stacker Truck

Product Description

Product Application Technology Characteristics 1.The pallet truck is economical in design;
2.Standard epoxy resin powder coating, anti-fragmenta­tion, anti-corrosion;
3.Extremely strong lightweight steel structure, the body weight is only 70kg;
4.Solder joints and reinforced fork tips for durability;
5.Three-stage handle - lifting, lowering, neutral;
6.High quality 190 degree corner setting;
7.The number of strokes of the oil pump is up to 8 times, and the height of each stroke is up to 11 mm;
8.Reliable oil leakage hydraulic system; Technology Parameter

model	unit	SDC-A20	SDC-A25	SDC-A30	SDC-A50
load capacity	kg	2000	2500	3000	5000
front wheel size	mm	φ180*50	φ180*50	φ180*50	φ180*50
rear wheel size	mm	φ80*70	φ80*70	φ80*70	φ80*70
lifting height	mm	85-195	85-195	85-195	85-195
total height	mm	1250	1250	1250	1250
overall length	mm	1480/1580	1480/1580	1480/1580	1480/1580
fork length	mm	1150/1220	1150/1220	1150/1220	1150/1220
outer width of fork	mm	550/685	550/685	550/685	550/685
ground clearance center of wheelbase	mm	30	30	30	30
turning radius	mm	1265/1335	1265/1335	1265/1335	1265/1335
net weight	kg	60-68	64-71	68-75	132-140

FAQ Q1: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
Q2:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
Q3:How long can I get my order finished?
A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.
Q4:Can you customize the configuration/logo/lable/color according to our requirements?
A:Yes.
Q5:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case
