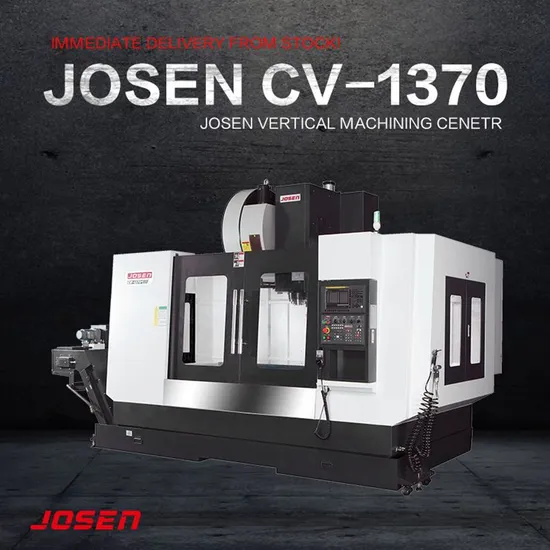

Vmc1370 Customized High Precision Automatic Milling Machining Center CNC Vertical Machine Center Price

Vmc1370 Customized High Precision Automatic Milling Machining Center CNC Vertical Machine Center Price

US$20,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1370
Condition
New
Certification
CE, ISO9001, ISO 14000
Customized
Customized
Material
Metal/Stainless Steel/Iron
Application
Metal Cutting Machine, Metal Processing Machinery Parts
Electricity Demand
30kVA
Gross Weight
9500kg
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
4800*3200*3030mm
Trademark
Josen
Origin
Changzhou, Jiangsu, China
HS Code
8457101000
Production Capacity
3000set/Year

Packaging & Delivery

Package Size
1201.00cm * 233.00cm * 215.00cm
Package Gross Weight
39500.000kg

Product Description

VMC1370 Customized High Precision Automatic Milling Machining Center CNC Vertical Machine Center Price
Product Description
Basic Info
Number Name Number Name
1 FANUC 0I-MF CNC controller
10 Chip pan and water tank
2 Full cover shroud 11 Transformer
3 Automatic lubricant system 12 Spindle air curtain dust protection system
4 Ground bolts and spacers 13 Mechanical, electrical and operating instructions
5 Tool-box 14 Rigid tapping
6 Working light 15 Electrical box heat exchanger
7 Warning light 16 Machine cleaning water gun
8 M30 automatic power-off system 17 Three-axis slide telescopic shield

9
Portable chip blowing air gun
18
24-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Specification
Description / Machine Model Unit CV-1370
Itinerary
X-axis travel mm 1320
Y-axis travel mm 720
Z-axis travel mm 650
Distance from nose of spindle to table surface mm 150-800
Workbench
Working table size (X*Y) mm 1400*700
Table T-slot size (width * number of slots * spacing) mm 18*5*125
Max. loading capacity of working table KG 1000
Spindle
Spindle motor (continuous/30 minutes) kw 11/15
Spindle speed rpm 10-10,000
Spindle inner taper bore BT40
Three axis
X/Y/Z axis motors kw 3/3/3
Feed rate
Rapid feed rate (X/Y/Z) mm/min 24000/24000/24000
Fastest cutting feed rate mm/min 1-10,000
Tool change system (optional)
Tool magazine capacity (standard/optional) set 24/30
Tool magazine form Arm type
Latin form MAS-P40-1(45°)
Maximum tool diameter of adjacent tools Ø80
Max. tool diameter of empty adjacent tool Ø150
Maximum tool length mm 300
Maximum tool weight kg 8
Machine accuracy
Three-axis laser positioning accuracy (JIS6338 actual measurement method)
Positioning accuracy (full stroke) mm ±0.005
Repeat positioning accuracy (full stroke) mm ±0.003
System
Controller FANUC 0I-MF
Oil pressure system
Water tank capacity liter 220 (rear drainage)
Pneumatic pressure requirements kg/cm2 6
Electricity
Power Specifications AC380±10%,3 phase,60Hz/50Hz
Electricity demand KVA 30
Other
Floor space (L*W) mm 4800*3020(Front track type)
Machine height (maximum) mm 3030
Machine weight T 9

Right elevation


Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
