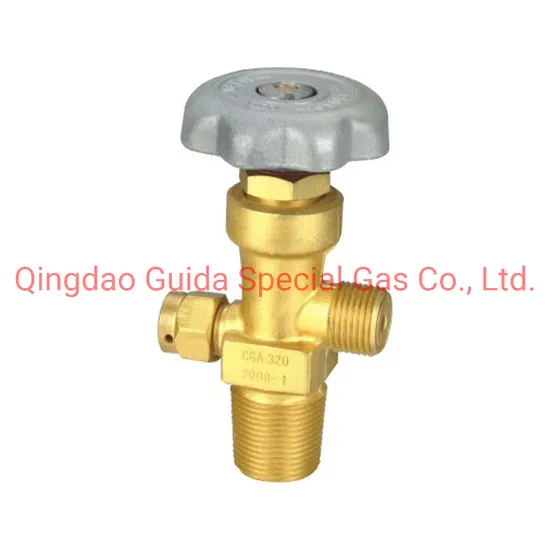

High Quality Cga Oxygen, Argon, Nitrogen Gas Cylinder Valve Complete Specifications Cga320

Product Description

Product DescriptionA valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically valves fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure.
Gas cylinder valves are found in virtually every industrial process, including water & sewage processing, mining, power generation, processing of oil, gas & petroleum, food manufacturing, chemical & plastic manufacturing and many other fields.
Gas Cylinder Valve Description
1. TYPE: CGA 2. MEDIUM AVAILABLE: O2 N2 Ar H2 He N2
3. INLET THREAD: 25E
4. OUTLET THREAD: G5/8.CGA.BS341.DIN477.JISB
5. WP(Mpa: 15.20
6.DN(mm):3.4 .7
Specifications

Type	WP(MPa)	DN(mm)	Medium	Outlet thread	Inlet thread	Safety device	Frame madality
CGA180	15	Φ3	CO2	0.625-18UNF-RH-EXT	0.75-16UNF	22.5MPa	Diaphragm
CGA200	3	Φ3	C2H2	0.625-20NGO-RH-EXT	3/8-18NGT	100±5ºC	Pin type
CGA200-1	3	Φ3	C2H2	0.625-20NGO-RH-EXT	3/8-18NGT	100±5ºC	Pin type
CGA300-1	3	Φ4	C2H2	0.825-14NGO-RH-EXT	3/4-14NGT	NO	Flap type
CGA300-1A	3	Φ4	C2H2	0.825-14NGO-RH-EXT	3/4-14NGT	100±5ºC	Flap type
CGA300-2	3	Φ4	C2H2	0.825-14NGO-RH-EXT	PZ27.8	NO	Flap type
CGA300-2A	3	Φ4	C2H2	0.825-14NGO-RH-EXT	PZ27.8	100±5ºC	Flap type
CGA300-3	3	Φ4	C2H2	0.825-14NGO-RH-EXT	1-111/2NGT	NO	Flap type
CGA320-2	15	Φ3	CO2	0.825-14NGO-RH-EXT	1-111/2NGT	22.5MPa	Flap type
CGA320-3	15	Φ3	CO2	0.825-14NGO-RH-EXT	3/4-14NGT	22.5MPa	Flap type
CGA320-4	15	Φ3	CO2	0.825-14NGO-RH-EXT	PZ27.8	NO	Flap type
CGA320-5	1800psi	Φ3	CO2	0.825-14NGO-RH-EXT	1.125-12UNF	3000psi	Flap type
CGA320-8	1800psi	Φ3	CO2	0.825-14NGO-RH-EXT	3/4-14NGT	3000pai	Flap type
CGA326-3	15	Φ3	N2O	0.825-14NGO-RH-EXT	3/4-16UNF	22.5MPa	Flap type
CGA326-5	1800psi	Φ3	N2O	0.825-14NGO-RH-EXT	1.125-12UNF	3000psi	Flap type
CGA330-1	15	Φ4	NF4	0.825-14NGO-LH-EXT	3/4-14NGT	NO	Diaphragm
CGA330-2	15	Φ4	NF4	0.825-14NGO-LH-EXT	PZ27.8	NO	Diaphragm
CGA346-1	3	Φ3	Air	0.825-14NGO-RH-EXT	PZ27.8	22.5MPa	Flap type
CGA346-2	3	Φ3	Air	0.825-14NGO-RH-EXT	1-111/2NGT	22.5MPa	Flap type
CGA346-3	3	Φ3	Air	0.825-14NGO-RH-EXT	3/4-14NGT	22.5MPa	Flap type
CGA346-4	15	Φ3	Air	0.825-14NGO-RH-EXT	1.125-12UNF	22.5MPa	Flap type
CGA346-5	15	Φ3	Air	0.825-14NGO-RH-EXT	0.75-16UNF	22.5MPa	Flap type
CGA350-1	15	Φ4	High puritygas	0.825-14NGO-LH-EXT	PZ27.8	NO	Diaphragm
CGA350-2	15	Φ4	High puritygas	0.825-14NGO-LH-EXT	PZ19.2	NO	Diaphragm
CGA510-1	3.3	Φ3	C2H2	0.885-14NGO-LH-INT	3/4-14NGT	NO	Flap type
CGA510-2	3.3	Φ3	C2H2	0.885-14NGO-LH-INT	1/2-14NGT	NO	Flap type
CGA510-3	3.3	Φ3	C2H2	0.885-14NGO-LH-INT	1-111/2NGT	NO	Flap type
CGA510-5	3.3	Φ3	C2H2	0.885-14NGO-LH-INT	PZ27.8	NO	Flap type
CGA520	3	Φ3	C2H2	0.895-18NGO-RH-EXT	3/8-18NGT	100±5ºC	Pin type
CGA540-1	15	Φ3	O2	0.903-14NGO-RH-EXT	3/4-14NGT	22.5MPa	Flap type
CGA540-2	15	Φ3	O2	0.903-14NGO-RH-EXT	PZ27.8	22.5MPa	Flap type
CGA540-3	15	Φ3	O2	0.903-14NGO-RH-EXT	1.125-12UNF	22.5MPa	Flap type
CGA540-3A	15	Φ3	O2	0.903-14NGO-RH-EXT	3/4-16UNF	22.5MPa	Flap type
CGA540-6	15	Φ3	O2	0.903-14NGO-RH-EXT	1/2-14NGT	22.5MPa	Flap type
CGA540-7	15	Φ3	O2	0.903-14NGO-RH-EXT	BS341 1"	22.5MPa	Flap type
CGA540-8	2015psi	Φ3	O2	0.903-14NGO-RH-EXT	1-111/2NGT	3360psi	Flap type
CGA540-8A	1800psi	Φ3	O2	0.903-14NGO-RH-EXT	1-111/2NGT	3000psi	Flap type
CGA540-8B	15	Φ3	O2	0.903-14NGO-RH-EXT	1-111/2NGT	22.5MPa	Flap type
CGA540-9	1800psi	Φ3	O2	0.903-14NGO-RH-EXT	1/2-14NGT	3000psi	Flap type
CGA540-10	2400psi	Φ3	O2	0.903-14NGO-RH-EXT	3/4-14NGT	4000psi	Flap type
CGA540-12	2015psi	Φ3	O2	0.903-14NGO-RH-EXT	3/4-14NGT	3360psi	Flap type
CGA540-13	2265psi	Φ3	O2	0.903-14NGO-RH-EXT	3/4-14NGT	3775psi	Flap type
CGA540-14	2015psi	Φ3	O2	0.903-14NGO-RH-EXT	1.125-12UNF	3360psi	Flap type
CGA540-14A	1800psi	Φ3	O2	0.903-14NGO-RH-EXT	1.125-12UNF	3000psi	Flap type
CGA580-1	1800psi	Φ3	Inert gases	0.965-14NGO-RH-INT	1-111/2NGT	3000psi	Flap typ

Product Image
ABOUT US
Qingdao Guida Special Gas Co., Ltd. is a sole distributor for Chinese well-known gas manufacturers, specializing in special gas, industrial gases, medical gases and calibration gases for more than six years. What the mainly gases we sell is Oxygen(O2), Carbon Monoxide(CO), Ethylene(C2H4), Sulfur Hexafluoride(SF6), Carbon Tetrafluoride(CF4), Nitrous Oxide(N2O), CO2/ETO, etc.
We also provide various specifications of high pressure seamless steel gas cylinders, high pressure aluminum gas cylinders, Dewars, drums and other equipment. Cylinder standards include: DOT-3AA, GB5099, EN1964-1, ISO9809-1, ISO9809-2 and ISO9809-3 with TUV, BV, CE certificate.
Cooperating with reliable manufacturers, we take great pride in providing our customers high quality products and superior service, which make us enjoy a high reputation in our country and own a certain number of customers of USA, Canada, Netherlands, France,UAE, etc.
FAQ
1. Are you a manufacturer?
No. However, we are sole distributor for our manufacturer. So there is no doubt that we can offer our customers the best prices.
2. What is your MOQ?
We can quote based on our customers' quantity. However, DG cargo should be exported in one container, so we suggest that the quantity should be one container or more. Price will be less if the quantity is more.
3. How about your lead time of production?
Normally, it is 25-30 days after PO and deposit by T/T
4. Can we get the COA and MSDS of the gases we need?
Sure. COA and MSDS are available.
5. Can we send the gas cylinders back and let you refill if they are reusable?
Yes. But you need to inform us in advance, because we need to handle the import customs clearance before exporting.
