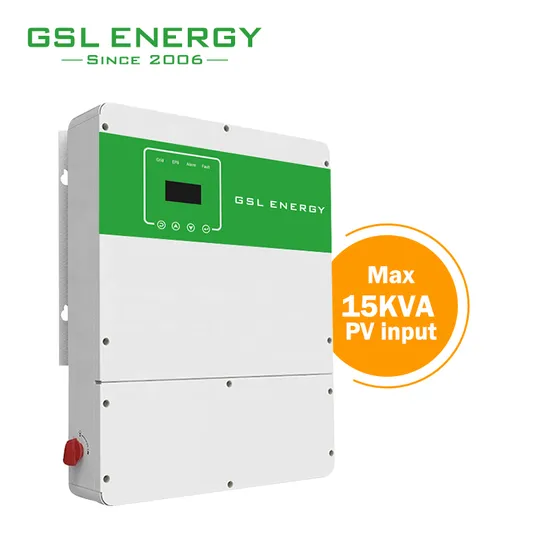

Gsl Energy North American High Frequency Max 15kVA PV Input Split Phase 2/3 Phase MPPT Solar Hybrid Inverter 12kw

Product Description

Company Profile
Product Description GSL Energy North American High Frequency Max 15KVA PV Input Split phase 2/3 Phase Mppt Solar Hybrid Inverter 12Kw
Basic System Architecture
The following illustration shows basic application of this inverter.It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

Model	GSL-H-12KHV-US
PV Input
PV Input Power	15.6KW
MPPT Number	4
Start-up Voltage	120
MPPT Voltage Range	125V-500V
Max PV Input Voltage	500V
Single MPPT Input Current	12A
Battery
Max Charging/Discharging Current	80A/80A
Battery Voltage Range	85V-400V
Battery Capacity Range	6.6 to 66KWH
Battery Type	Lithium-ion,Lead-acid
Communication	CAN/RS485
Back-up AC Output
Rated Backup Output Power	12KVA
Max Backup Output Power	15KVA 60S,18KVA 1S
Backup AC Output Voltage	110-120/220-240Vac Split phase
AC Frequency	50/60Hz
Output THDI	<2%
On Grid AC Output
Rate AC Output Power	±120/240V 12KVA
AC Output Voltage	211~264V@240V
AC Output Frenquecny	50/60Hz (45 to 54.9Hz/55 to 60Hz)
Power Factor	0.8leading...0.8lagging
Max Output Current	50A
AC Reverse Charging	Yes
Output THDI	<2%
Efficiency
Max Eifficiency	>=98.2%
CEC Eifficiency	>=97.2%
General Data
Output Conduit Size	25.4mm
PV Input Conduit Size	25.4mm
Battery Input Conduit Size	35.4mm
Operating Temperature Range	-25~+60°C
Environment Humidity	0-95%
Altitude	0-4000M (over 2000M derating)
IP Rank	IP65
Weight	30KG
Dimension (W*H*D)	530×660×200mm
Cooling	Natural Cooling
Noise (dB)	<29dB
Display	LCD
Communication	Modbus,RS485,WIFI,4G
Self-consumption At Night	<2.5W (with battery enabling <5W)
No Transformer	YES
Safety	UL1741SA all options,UL1699B,CSA22.2
EMC	FCC Part 15 ClassB

Application Scenario


Power Storage Wall - 5Kwh 10Kwh
Max support 14 units parallel connection.
