Rigid PVC Pipe Profile Board Scraps Flakes Powder Pulverizer Milling Machine
| US$1,000.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WS002
Automation
Automation
Computerized
Computerized
Certification
CE
Motor
Siemens
Color
Customizable
Electric Parts
Schneider
Gurantee
1 Year
Delivery Time
20 Days
Voltage
380V/50Hz or Other
Transport Package
Seaworthy Packing
Specification
10-100mesh
Trademark
WINSOAR
Origin
China
HS Code
8477800000
Production Capacity
1000sets/Year
Product Description
| Description of plastic milling machine: |
| Brief Introduction: This machine can be used for powder processing of polyethlene (PE), polyvinylchloride (PVC), polypropylene (PP), polystyrene (PS), ABS, nylon and other materials. Features: 1. The new disc design is used ,high-yield, strong resistance and the life of grinding disc is double the ordinary. 2. The use of newly designed professional bearings ,and reached a high rotation rate ,at the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering. 3. Installation and maintenance easy, open the door to cover clean-up. 4. Milling process of the whole seal, without dust leakage. 5. Full automated ,automatic feeding ,the materials and sorting. 6. Grinding gap adjustment is simple ,just use the plug-foot bolts and adjustments can be fine-tuning. 7. The host used the water and wind double cooling system, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, ground, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production. |
| Technical parameters of plastic milling machine: |
| Item/Model | WS-500 | WS-600 | WS-800 | |
| 1. Blade diameter | 483±1mm | 583±1mm | 783±1mm | |
| 2. Power | Main motor | 37kw | 45kw | 75kw |
| Blower | 3kw | 4kw | 11kw | |
| 3. Output size | 10-100 mesh 140μm-1400μm | 10-100 mesh 140μm-1400μm | 10-100 mesh 140μm-1400μm | |
| 4. Capacity | PVC: around 250kg/h | PVC: around 350kg/h | PVC: 400-600kg/h | |

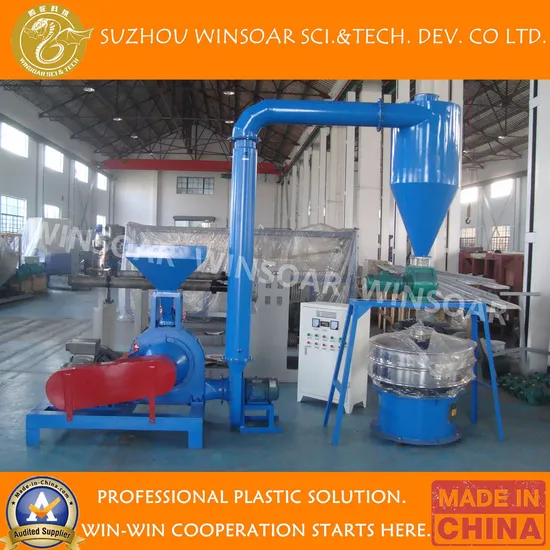

| Pictures of plastic milling machine: |
