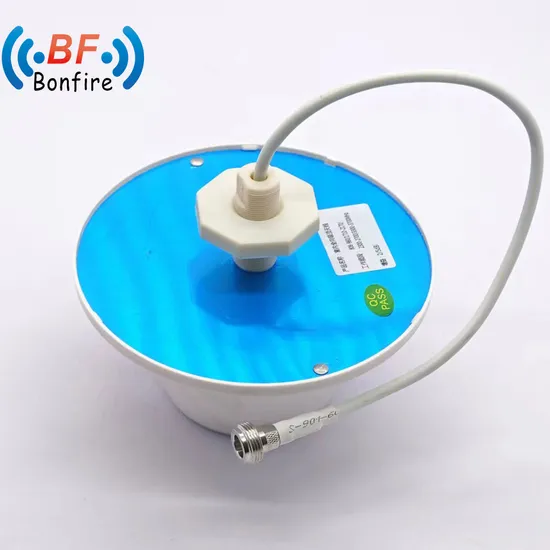

1710-2700 3300-4000MHz RF Antenna GSM WiFi Omni MIMO 4G Outdoor Antenna

1710-2700 3300-4000MHz RF Antenna GSM WiFi Omni MIMO 4G Outdoor Antenna

US$2.00-5.00 1 Piece (MOQ)

Basic Info.

Nature of Operation
Receiving Antenna, Transmitting Antenna
Operating Wavelength
Microwave
Sturcture Form
Wire Antenna
Usage
Ibs/Das/Pdas, Communication Antenna
Usage Occasion
Indoor
VSWR
<1.5
Frenquency(MHz)
698-806 806-960 1710-2700 3300-4000MHz
Production
OEM/ODM
Color
White/Customized
Capality
Ibs/Das Overall Project Delivery Capability
Connector Type
4.3-10-F X2
Application
Indoor
Transport Package
Carton/Palletizing
Specification
see below data table
Trademark
BF TECH
Origin
China
Production Capacity
2000000PCS/Year

Product Description


Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:

Frequency Range(MHz) 698-806 806-960 1710-2700 3300-4000
Gain(dB) 3.0±0.5 3.0±0.5 4.5±1.0 5.0±1.0
VSWR ≤1.8 ≤1.5 ≤1.5 ≤1.8
Polarization Linear×2
Horizontal
Beam width
Horizontal
Vertical
360
90 85 45 35
Isolation( dB) >17 >17 >20 >25
PIM, 3rd Order, 2 x2 W(dBc) ≤-150
Maximum Power(W) 50
Impedance(Ω) 50
Connector Type : 4.3-10-Fx2
Size(mm) Φ182×30
Antenna Weight(kg) 0.2
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Relative humidity(%): < 95
Operating Temperature(ºC): -55~60
Applications: Indoor





All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !
