Medical Cold Chain Package Relying on Evaporative Cooleing for Thermal Protection

Product Description

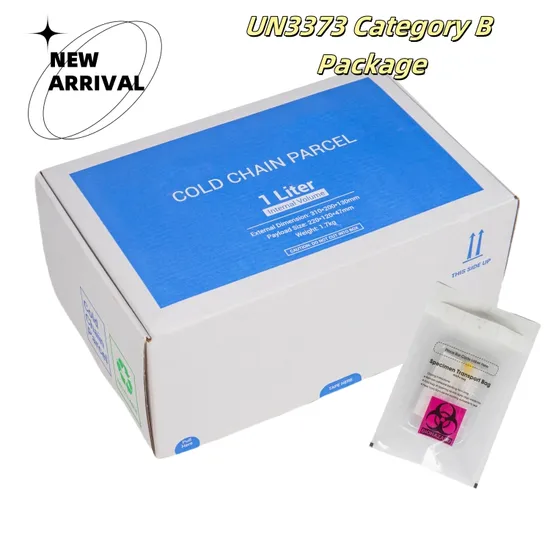

Novel Cold Chain Parcel
Ready to Use Phase Chage Material(RUPCM)Comply with UN3373, ISTA 7D, ISTA 3A Standard
with evaporative cooling
Activated by simply pressing a button
DESCRIPTION
RUPCM cold chain parcel is a novel cold chain temperature controlled thermal package that utilizes liquid-gas phase change material for cooling, primarily employed in cold chain transportation. It can initiate cooling with a one-touch activation, offer precise temperature control within the range of +2°C to +8°C, and maintain cold more than 48 hours.
RUPCM Thermal Package FEATURES
·Light Weight and Portable
·One-Touch Activation to Start Cooling
·Recyclable packaging, available separate purchase for cooling
engineMaintain temperature at +2°C~+8°C up to 48 hours
·RUPCM, Reliable, Economical, and Easy to Use for Perfect Cold Chain Shipping!
One push of a button activates the evaporative cooling engine, making these shippers ideal for those needing temperature controlled packaging solutions, but who may not have the infrastructure or experience using more complex cold chain shipping solutions.
Main Picture
Easy Operation
Appliaction
Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across international borders for a long time.
Product Specification

Model No.	DR-01A1A 1L
Duration	48 hours
Weight	1.7 kg/3.7 lb
Payload Volume	1 Liters
Outer Dimension	305*205*128 mm/12*8.1*5 in
Payload Size	220*120*47 mm / 8.7*4.7*1.9 in

Relevant Series

Model No.	Volume	Weight	External Dimensions	Payload size	Duration	Temperature Range
DR-01A1A 1L	1L	1.7 kg 3.7 lb	305*205*128 mm 12*8.1*5 in	220*120*48 mm 8.7*4.7*1.9 in	48h	+2°C~+8°C
DR-02AE5A 0.5L	0.5L	1.5 kg 3.3 lb	305*205*105 mm 12*8.1*4.1 in	190*90*30 mm 7.5*3.5*1.2 in	42~48h	+2°C~+8°C

Testing Graph
ABOUT US
Cold Chain Parterner form "China speed"
Guangzhou Cesin Cold Chain Technology Co., is a supplier of cold chain temperature control packaging and temperature monitoring system solutions.Located in China,it focus on offering the one-stop cold chain tools and solutions (CCTS). Independently developed PCM (phase change materials )and cold chain packages can cover the temperature range from - 80 ºC to +60 ºC maintaining 24 to 168 hours at a constant temperature. In 2017,A special cold chain Internet of Things temperature monitoring system has been developed as strategic layout, which could monitor temperature and humidity in the whole process of cold chain, such as cooler boxes, refrigerators, refrigerators and so on. Real-time monitoring, early warning, analysis and management to escort the medical/food cold chain.
Our FactoryWe have 46,000 square metres of production, R&D bases and marketing centres in Yuyao, Zhejiang, Guangzhou, Guangdong, and Wuhan, Hubei, with Intertek SQP third-party certification, and our products are marketed in Europe and the United States; the newly launched intelligent incubator temperature control range can be freely switched between -50 ºC, -25 ºC, -20 ºC, -16 ºC, +5 ºC, +20 ºC, +55 ºC, and supporting the GPRS/LoRa wireless monitoring system, combined with the automated verification platform to achieve a low-cost one box, one report, one GSP validation solution. LoRa wireless monitoring system, combined with the automated verification platform to achieve a low-cost one box, one report GSP verification solution.
Certificate Honour
