Pex Al Pex Pipe Pex Al PE Aluminium Plastic Composite Pipe PE Al PE Water Gas Pipe

Product Description

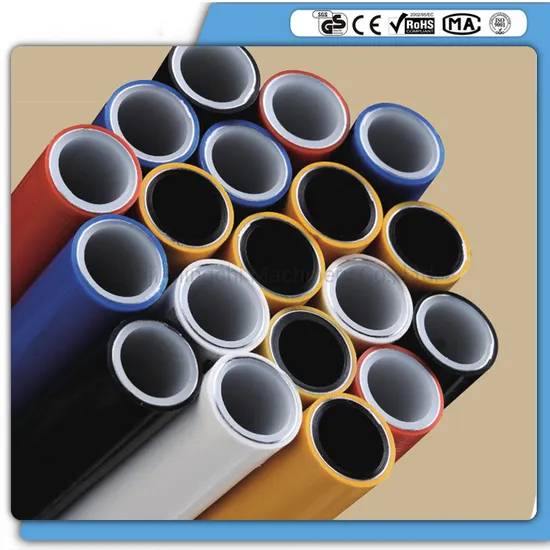

PEX-AL-PEX ALUMINIUM PLASTIC COMPOSITE PIPE
Product DescriptionPRODUCT DESCRIPTION:
Specification

Item Name	PEX-AL-PEX PIPE
Place of Origin	China
City	Zhejiang
Brand Name	OEM/ODM/MINGCHI
Model Number	16-63mm
Material	PEX-Al-PEX
Heat Conductivity	0.45W/(M.K)
Specification	16-63mm
Linear Expansion Coefficient	0.025mm/(M.K)
Outer Diameter	16-63mm
Length	25/50/100/200/500M, 50m/100m/200m/500m
Thickness	2.0-3.0mm
Standard	CE, ISO
Color	OEM
Processing Service	Cutting
Product name	Multilayer pipe
Size	16-63
Certification	CE
Color	white/yellow/red/blue
Length	50m/100m/200m/500m
MOQ	20000meters

Product Parameters
Related Products:
Introduction: PEX AL PEX multilayer pipeeField PEX-AL-PEX pipe is a five-layer composite pipe that combines the advantages of a metal and plastic pipe and eliminates the disadvantages of both materials at the same time. The aluminum core is absolutely diffusion tight; it reliably prevents oxygen/gases from permeating into pipe. It compensates and reduces snap-back forces and heat expansion with changes of temperature.eField PEX multilayer composite pipe consists of an overlapped or butt welded aluminum core with an inner and outer layer or high temperature-resistant polyethylene. All layers are permanently bonded together by intermediate adhesive layers. The aluminum thickness for eField PEX pipe has been selected to meet compressive and flexural strength requirements.Butt welded PEX pipe is moulding with several steps that is argon-arc welding style.
Applications of PEX-AL-PEX pipe:1.Construction cold and hot water supply2.Household heating system3.Solar system4.Swimming pool5.Central air conditioner system
Our AdvantagesMC Servise & Advantages:
**High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
**Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
**Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
**Corrosion Resistant: resist chemical matters or electron chemical corrosion
**Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
**Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
**Long Life: more than 50 years under normal conditions
**Recycled and Environment-friendly
1. Sampe--Sample is available.
2. Low MOQ--Small quantity of a trail order is acceptable in various purchase order.
3. Container Loading service--We offer the service of booking container and loading to container if you need.
4. Custom Design--We provide OEM/ODM service can make your brand or logo.
5. Quality Control--We have quality checking before sending goods
6. Competitive Price--Assure you have resonable and competitive price in your market
7. One-stop Service--We have numerous varieties of products, can satisfy all your needs
Company ProfileBreif Introduction
We are a high-tech enterprise founded in 2001.located in zhuji city,zhejiang province.Start exporting since 2007, specialized in a wide range of Pipes and Fittings& SANITARY WARE products, such as: PPR pipe&fittings,Brass fittings,Pex Pipe&Fittings,Ball valves,Faucets, Mixers, Bathroom Accessory of all the series and so on for many years. Our customer is all over the world, especialy in Middle East, Africa, East and Southeast Asia, South America and Occident countries all around the world. Every years we help our customers load more than 100 HQ containers, and our product and service have gained high reputation in this field.
With rapid development, we have improved and stabilized the quality of our products. Simultaneously, our staff members have emphasized on the quality, design and development of products. We have also employed professional technicians to design classic brand with equipment for sanitary ware from at home and abroad.
As a leading manufacturer in this field, we focus all efforts on developing our preponderant advantages: Reasonable Price
Various Products
Quaity Guarantee
Excellent Service
"Mingchi with you forever" , we are willing to create a more colorful life for you with exquisite products. Sincerely welcome all customers to cooperate with us.
Certifications
Packaging & ShippingOur customer is all over the world, especialy in Middle East, Africa, East and Southeast Asia, South America and Occident countries all around the world. Every years we help our customers load more than 100 HQ containers, and our product and service have gained high reputation in this field.
