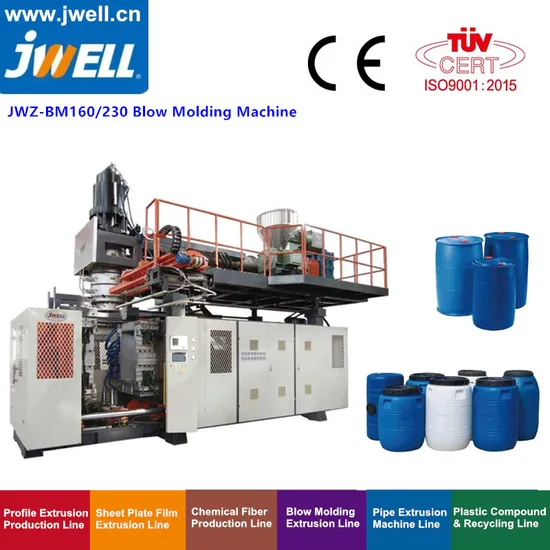

200L 220L 250L Plastic Drum Chemical Barrel Blow Molding Moulding Machine

Product Description

Performance and advantages ·Suitable for producing 200-230L open-top drums, double"L"ring drums. ·Adopt high output extrusion system, accumulating die head. ·Optional hydraulic servo control system.
Technical parameters

Model	Unit	BM230
Max product volume	L	230
Dry cycle	Pc/h	280
Die head structure	Accumulating type
Main screw diameter	mm	120
Max plasticizing capacity (PE)	kg/h	350
Driving motor	Kw	132
Accumulating volume	L	24
Oil pump motor power	Kw	22
Clamping force	KN	900
Space between platen	mm	800-1800
Platen size W*H	mm	1320*1600
Max. mold size	mm	1200*1800
Heating power of die head	Kw	36
Machine dimension L*W*H	m	8.2*3.5*5.5
Machine weight	T	36
Total power	Kw	230

Note: Information listed above are for reference only, the production line can
be designed by customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components
