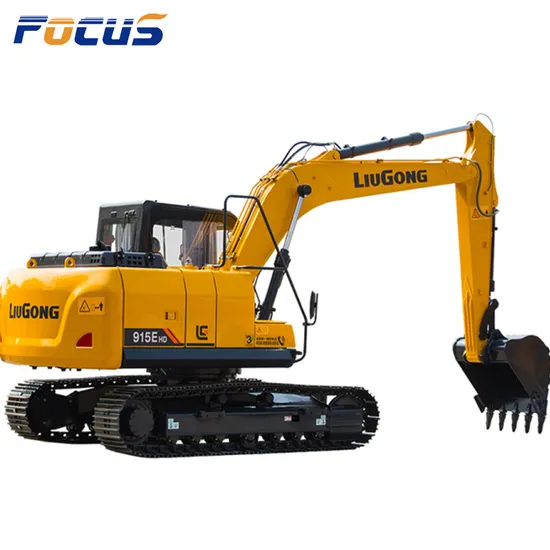

Liugong Excavator Series 922e/915e/925e/920e Construction Equipment Machinery

Product Description

Product Description

When you deal with large materials, LiuGong's large excavator can provide tremendous power support. Our advanced intelligent power
control system can intelligently match and provide the required power to ensure the machine can work effectively.
We've taken the best from our E-Series machines, combined that with extensive R&D and customer insight to deliver the F-Series, a
new range of state-of-the-art excavators designed with the operator at the heart.
• Reinforced undercarriage components, heavy duty boom and arm allow the excavators to work hard for longer.
• The LiuGong E series excavator features 6 selectable working modes - Power, Economy, Fine, Lifting, Breaker, Attachment that
optimize performance and fuel consumption to your specific conditions.
• Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor,
suspension seat, provide most comfortable working environment.
• Additional spool in the MCV (main control valve) and the space for PTO pump on the main pump allow for the easy installation of
attachments lines.
• E series cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection
System (FOPS) is optional.
• Inspection parts, filters and water separator are conveniently located. Detailed Photos

Product Parameters

Machine weight	21500kg
power	125kW@1850rpm
Standard bucket capacity	0.9m³
Emission Standards	National Three
Type	6-cylinder in-line, turbocharged,
	Air-to-air intercooling, high-pressure common rail,
	Electronically controlled direct injection
Rated power (rated speed)	124kW@2050rpm
Net power (rated speed)	117kW@2050rpm
Maximum torque (torque/speed)	658/1200N·m
cooling method	water cooling
Travel speed high/low	5.3/3.0km/h
Swing speed	10.5rpm
Gradeability	35°
Ground voltage	44.2kPa
Stick rated/supercharged digging force (ISO)	97/105kN
Bucket rated/supercharged digging force (ISO)	140/152.5kN
long (shipping status)	9570mm
Overall width (standard track configuration)	2800mm
High (shipping status)	3140mm
minimum ground clearance	440mm
Chassis wheelbase	3370mm
Chassis track gauge	2200mm
Track width (standard)	600mm
Maximum digging height	9945mm
Maximum digging radius	9870mm
Maximum digging depth	6562mm
Maximum unloading height	7170mm
