Stone Cone Crusher Mining Machine for Calcium Carbonate Gypsum Limestone Quartz Graphite Calcite Feldspar Fluorite Kaolin Powder Production Line

Product Description

Product Overview

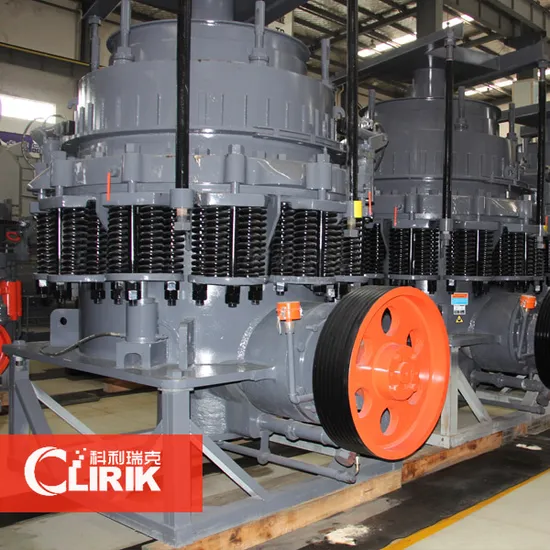

CS coal cone crusher
Raw materials: Iron ore, granite, limestone, quartzite, sandstone, cobblestone and so on.
Capacity: 27-1400t/h
Max feeding size: 369mm
Application: Cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries
Shipping ports: Shanghai, China
Delivery: 15 days after received the deposit
Parameter CS coal cone crusher

Model	Movable Cone Diameter mm (inch)	Chamber Style	Opening Side	Closed Side	Discharging Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Capacity (t/h)	Machine Size (mm)
			Max.Feeding (mm)
CSB75	900 (3')	Medium	83	102	9-22	580	6-75	Y315S-6/75	45-91	2821×1880 ×2164
		Coarse	159	175	13-38				59-163
CSD75	914 (3')	Fine	13	41	3-13	580	6-75	Y315S-6/75	27-90	2821×1880 ×2410
		Medium	33	60	3-16				27-100
		Coarse	51	76	6-19				65-140
CSB160	1295 (4 1/4')	Fine	109	137	13-31	485	6-185	Y355M2-6/185	109-181	2800×2342 ×2668
		Medium	188	210	16-31				132-253
		Coarse	216	241	19-51				172-349
CSD160	1295 (4 1/4')	Fine	29	64	3-16	485	6-160	Y355M1-6/160	36-163	2800×2342 ×2668
		Medium	54	89	6-16				82-163
		Coarse	70	105	10-25				109-227
CSB240	1650 (5 1/2')	Fine	188	209	16-38	485	6-240		181-327	3911×2870 ×3771
		Medium	213	241	22-51				258-417
		Coarse	241	268	25-64				299-635
CSD240	1650 (5 1/2')	Fine	35	70	5-13	485	6-240		90-209	3917×2870 ×3771
		Medium	54	89	6-19				136-281
		Coarse	98	133	10-25				190-336
CSB400	2134 (7')	Fine	253	278	19-38	435	6-400		381-726	5200×4300 ×4700
		Medium	303	334	25-51				608-998
		Coarse	334	369	31-64				870-1400
CSD400	2134 (7')	Fine	51	105	5-16	435	6-400		190-408	5200×4300 ×4700
		Medium	95	133	10-19				354-508
		Coarse	127	178	13-25				454-599

Brief Introduction of CS coal cone crusher:
CS coal cone crusher is quite excellent in hard material crushing and the final product has good sharp. The innovations like stable lubrication system and excellent sealing system evidently reduce the production cost, helping you to achieve the highest level of profitability.
CS series coal cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.
1. High yields and high grade final products.
2. With grease seal and upstage sealing element imported from Japan, provide sturdy guarantee for long-playing stable operation of machine.
3. Overload protective system can effectively ensure safety of crusher.
4. Easy to control discharging size by using different crushing cavity and adjusting device.
Packing & Shipping of CS coal cone crusher:
Packing: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after recieving the deposit of the devices.
Other Products offered
Company Profile
Our Company
Shanghai Clirik Machinery Co., Ltd. Is located in Pudong New District, Shanghai, China, which is specialing in manufacturing grinding mills, Raymond mills, crushers and other associate accessories with decades experience. We have strong and professional technical and sale team. Customers' satisfaction is our final and forever pursuing.
Our Services
Services to be enjoyed when purchasing grinding equipment: Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.

2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.

3.Clirik customizes the logo and color of the grinding equipment according to your company image.

4.Clirik provides third party inspection to ensure the quality of your grinding equipment.

After-sales service:
1. Clirik provides you with online installation and use videos.

2. Clirik will provide you with technicians to install and debug the grinding equipment.

3. Clirik trains you the technicians who use and maintain the grinding equipment.

4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
FAQ
Inquiry Service
More details we needed for sending you more suitable quotation,
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our products will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We look forward to your inquiries!
