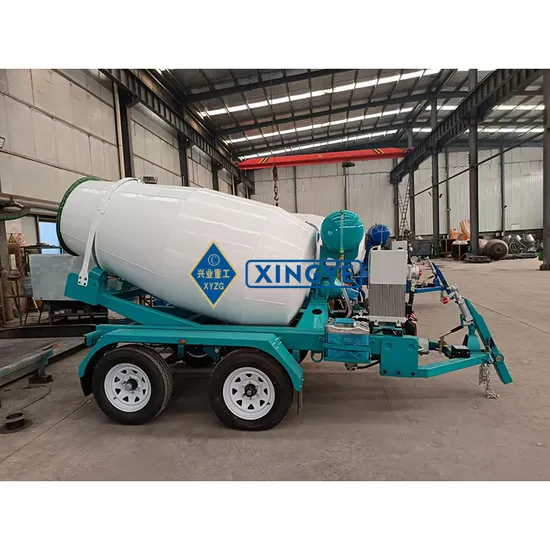

Construction Machine Transport Trailer Mini 3cbm Concrete Mixer Truck

Product Description

construction machine transport trailer mini 3cbm Concrete Mixer Truck
Product Description
A concrete mixer truck,
also known as a concrete mixer transport truck,
is a truck used to transport ready-mixed concrete. Transportation Truck Trailer Mixer Truck Dump Truck Tank Truck
It consists of a mixing drum and a truck chassis.
When working, the concrete mixer truck keeps the mixing drum rotating at a certain rate to delay the setting time of concrete, increase the transportation distance, and ensure the quality of concrete. At present, concrete mixer trucks are widely used in major commercial concrete mixing stations and large concrete engineering projects.
3 Yard Portable Concrete Mixer on Trailer
Our 3-yard portable concrete mixing trailer is great for small projects like sidewalks, fences, retaining walls, and other small short-load concrete projects.

If you do many small short-load orders a month and have to pay more than you want in short-load fees and order minimums, then it might be time to get yourself a 3-yard Portable Concrete Mixer on Trailer.

Our 3-yard mixer can be loaded with our hopper and a skid steer or our wheel loader. You can either start a mini batch plant to rent the trailers out or use it for your short-load orders.
We offer shipping and financing options with all our equipment.

Hit the Get a Quote button and talk to one of our representatives today.

Eliminate Wait Time, Eliminate Order Minimums, and Eliminate Short Load Fees.


Key Features
3-yard mixing capacity Wide lid design for effortless concrete chipping Extended fins for smooth discharge Hour display for easy maintenance tracking User-friendly tilt and rotation levers 22 HP Honda GX690 electric start engine for fast mixing and durability Battery switch for convenient power control 1-year limited structural warranty included Lid cover for added protection Optional water attachment available

Detailed Photos
The principle of a concrete tank truck is the same as that of a concrete mixing barrel, except that the mixing barrel is pulled by a vehicle and mixed while moving.
When you reach your destination, you can put the concrete down!
Under normal circumstances, the concrete in the tank truck will not solidify!
Because whether the vehicle is driving or stopped, as long as there is concrete in the mixing tank, the mixing tank must always maintain a low speed rotation.
During transportation, the drum speed is about 4 to 8 revolutions per minute.
There are several benefits to keeping it rotating: as long as the concrete is not segregated and the concrete collapse is maintained! The second is the mixing function, which makes the concrete more uniform!
Product Parameters

Type	1m³	1.5m³	2m³	2.5m³
Geometric Volume	1.5m³	2.4m³	3.6m³	4.5m³
Diameter of Drum	1.6M	1.6M	1.6M	1.6M
Angle of Inclination	13°	13°	15°	15°
Overall Size	5000*1600*2400mm	5000*1600*2400mm	5000*1600*2400mm	5350*1950*2600mm
Power	28HP Diesel	28HP Diesel	32HP Diesel	35HP Diesel
Weight	2300kg	2800kg	2800kg	2800kg

Specifications
Length: 192 inches (includes tow bar)
Width (Wheel to Wheel): 68 inches
Height at Rear: 87 inches
Height at Front: 55.5 inches
Tire Size: 6.5 - 16 LT
Hitch Type: 1 7/8 inch
Pour Opening: 3 ft
Available Capacity: 2.616 cubic yards
Battery Size: 12 volt 60 Ah
Gas Tank Size: 2.6 Gallon
Cooling Fan Type: Electric
Dry Weight: 3,300 lbs
GVW Weight: 10,300 lbs
Water Tank Size: 50 Gallons
Axle Type: Dual
Tank Diameter: 61.02 inches
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications
Our Advantages
FAQ

1. Are you a manufacturer, trading company or a third party?
We are a manufacturer 15 years experience.
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
