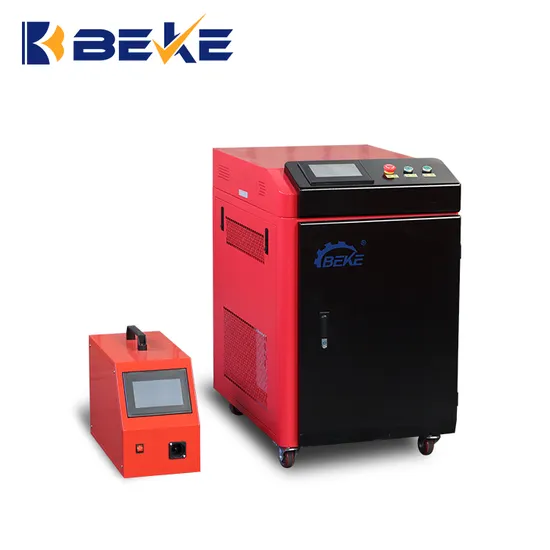

High Precision Laser Welder 1500W Handheld Fiber Laser Welding Machine Used for Steel Aluminum Other Metal Alloys
Basic Info.
Application
Electronic Industry, Automotive Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Laser Spot Welder
Weight
240kg
Dimensions
1400mm*680mm*1500mm
Recommended Thickness
0.5-3mm
Working Voltage
380V
Transport Package
Wooden Box
Specification
2CBM
Trademark
BEKE
Origin
China
Product Description
| Power | 2000w |
| Laser wavelength | 1070 nm |
| Fiber length | Standard 10M |
| Operation mode | Continuous / modulation |
| Welding machine speed range | 0-120mm/s |
| Cooling water machine | Industrial thermostatic water tank |
| Working environment temperature range | 15-35ºC |
| Humidity range of working environment | < 70%, no condensation |
| Recommended welding thickness | 0.5-3mm |
| Welding gap requirements | ≤0.5mm |
| Working voltage | AC380V |
| External dimensions | 1400mm*680mm*1500mm |
| Equipment weight | 240KG |
| FAQ 01What is fiber laser cutting machine? A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc. 02What's the max. cutting thickness? A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal. 03Do you have CE document and other documents for customs clearance? A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance. 04 Payment terms? A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on. 05 I don't know how to use after i receive Or i have problem during use, how to do? A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished. 06 I don't know which one is suitable for me? A:just tell us below information1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need. |
