ABC Cable 0.6/1kv 3X25+50mm2 Pre-Assembled Cable 4X16 mm2 Alu; NFC 33 209 Aluminum Overhead Cable

Product Description

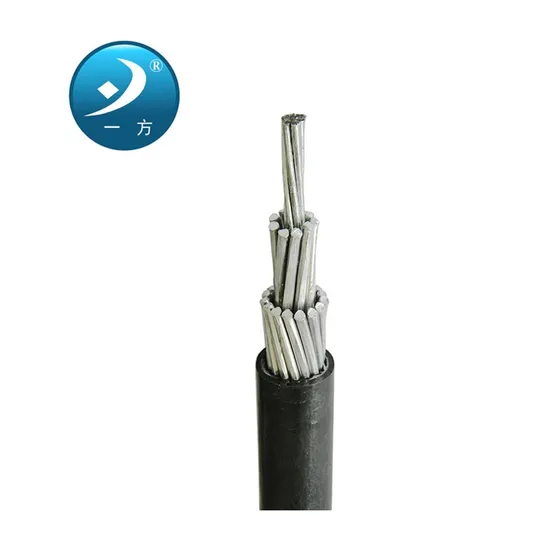

Low voltage air Network cable in twisted beams, three phase conductors and a conductor for street light in aluminum, a carrier neutral conductor in Almelec, polyethylene insulation reticulated with black color ( rated voltage = 1000V). Marking of phases in 1-2-3 numbers in ink (or engraved or embossed).
Complies with NFC 33-209 specifications.
3x25 mm2 + 1x54,6 mm2 + 1x16 mm2
Other Type ABC cable:

ALUMINIUM LOW VOLTAGE AERIAL BUNDLED CONDUCTORS ABC
Designation Composition	Diameter Insulated Conductor (mm)			Bundle	Total	Resistance	Adm. Current		Ad. Short-circuit	Voltage drop
				Diameter	Weight	at 20(D.C.)	(A)		current for is (1s)	cos j=0,8
	Phase	Neutral	EP	mm	kg/km	Ohm/km	30 C	40 C	KA	V/A.Km
2x16 MM2	7.40	7.40	-	15	132	1.910	93	85	1.39	3.980
2x25 MM2	9.00	9.00	-	18	200	1.200	122	109	2.16	2.540
2x35 MM2	10.60	10.60	-	22	275	0.868	129	115	3.05	1.630
2x50 MM2	11.60	11.60	-	24	348	0.641	158	141	4.35	1.270
4x16 MM2	7.40	7.40	-	18	265	1.910	83	75	1.39	3.490
4x25 MM2	9.00	9.00	-	22	402	1.200	111	100	2.16	2.230
4x35 MM2	10.60	10.60	-	26	552	0.868	131	120	3.05	1.630
1x54,6+3x25 MM2	9.00	13.00	-	30	509	1.20	112	100	2.16	2.200
1x54,6+3x25+1x16 MM2	9.00	13.00	7.40	30	571	1.20	112	100	2.16	2.200
1x54,6+3x25+2x16 MM2	9.00	13.00	7.40	30	641	1.20	112	100	2.16	2.200
1x54,6+3x35 MM2	10.60	13.00	-	33	621	0.87	138	120	3.05	1.650
1x54,6+3x35+1x16 MM2	10.60	13.00	7.40	33	687	0.868	138	120	3.05	1.650
1x54,6+3x35+2x16 MM2	10.60	13.00	7.40	33	754	0.868	138	120	3.05	1.650
1x54,6+3x50 MM2	11.60	13.00	-	36	730	0.641	168	150	4.35	1.270
1x54,6+3x50+1x16 MM2	11.60	13.00	7.40	36	797	0.641	168	150	4.35	1.270
1x54,6+3x50+2x16 MM2	11.60	13.00	7.40	36	863	0.641	168	150	4.35	1.270
1x54,6+3x70 MM2	13.80	13.00	-	38	953	0.443	213	190	6.09	0.870
1x54,6+3x70+1x16 MM2	13.80	13.00	7.40	38	1019	0.443	213	190	6.09	0.870
1x54,6+3x70+2x16 MM2	13.80	13.00	7.40	38	1085	0.443	213	190	6.09	0.870
1x54,6+3x70+1x25 MM2	13.80	13.00	9.00	40	1053	0.443	213	190	6.09	0.870
1x54,6+3x70+2x25 MM2	13.80	13.00	9.00	40	1154	0.443	213	190	6.09	0.870
1x70+3x70 MM2	13.80	13.50	-	41	986	0.443	213	190	6.09	0.870
1x70+3x70+1x16 MM2	13.80	13.50	7.40	41	1052	0.443	213	190	6.09	0.870
1x70+3x70+2x16 MM2	13.80	13.50	7.40	41	1118	0.443	213	190	6.09	0.870
1x70+3x95 MM2	15.30	13.50	-	44	1217	0.320	258	230	8.27	0.670
1x70+3x95+1x16 MM2	15.30	13.50	7.40	44	1283	0.320	258	230	8.27	0.670
1x70+3x95+2x16 MM2	15.30	13.50	7.4	44	1349	0.320	258	230	8.27	0.670
1x70+3x120 MM2	16.60	13.50	-	46	1444	0.253	300	268	10.40	0.550
1x70+3x120+1x16 MM2	16.60	13.50	7.4	46	1510	0.253	300	268	10.40	0.550
1x70+3x120+2x16 MM2	16.60	13.50	7.40	46	1577	0.253	300	268	10.40	0.550
1x70+3x150 MM2	18.00	13.50	-	48	1658	0.206	344	307	13.00	0.460
1x70+3x150+16 MM2	18.00	13.50	7.40	48	1724	0.206	344	307	13.00	0.460
1x70+3x150+2x16 MM2	18.00	13.50	7.4	48	1790	0.206	344	307	13.00	0.460
1x95+3x120 MM2	16.60	16.00	-	47	1530	0.253	300	268	10.40	0.550
1x95+3x120+1x16 MM2	16.60	16.00	7.40	47	1596	0.253	300	268	10.40	0.550
1x95+3x120+2x16 MM2	16.60	16.00	7.40	47	1662	0.253	300	268	10.40	0.550
1x95+3x150 MM2	18.00	16.00	-	49	1743	0.206	344	307	13.00	0.460
1x95+3x150+16 MM2	18.00	16.00	7.40	49	1809	0.206	344	307	13.00	0.460
1x95+3x150+2x16 MM2	18.00	16.00	7.40	49	1875	0.206	344	307	13.00	0.460
