Durable High Output PP PE film washing machine

Product Description

PE(polyethylene)/PP(polypropylene) films/bags recycling(washing crushing drying and pelletizing/granulating) line/machine/plant
Our factory(Mooge) has many years experience in manufacturing PE PP plastic films/bags recycling machine, which can also be manufactured according to your requirements.
Description:
• PE PP plastic films/bags recycling machine is mainly used to recycling waste plastic PE/LDPE/LLDPE/PP films/bags, PP woven bag, PP cement bags,PP Jumbo bag and so on.
• PE PP plastic films/bags recycling machine is designed and manufactured by MOOGE TECH. The waste dirty material go through crushing, washing, drying, and collecting process will turn to be clean flakes for pelletizing. We also supply plastic pelletizing line (plastic granulator) to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.
• PE PP plastic films/bags recycling machine can easily remove sand oil dirties and other impurities, finally you will get clean ideal PE PP flakes.
• All your requirements of PE PP plastic films/bags recycling machine can be customized.
Flowchart:
Conveyor belt → Crusher →friction washer → float washer → dewatering machine → dryer → silo. (If the material is very dirty and oiled, some clients may add hot washer for recycling line.)
Machines line lists and fuctions:

SN:	Item name:	Function
1	Belt Conveyor	Conveying materials
2	Crusher	Crushing the materials into flakes
3	Friction washer	Washing with high speed to remove the dirty and loading out material
4	Auto floating washing tank	Washing out the general dirty such as sand,mud
5	Film/bags Dewatering machine	Removing water from flakes
6	Hot Air Drying system	Drying the flakes
7	Automatic packing system	Collecting the flakes
8	Electrial contol panel	Used to control the whole Line
9	Free spare parts
Plastic PE PP plastic film/bags washing/recycling machine/line/plant can be customized according to your requests.

Advantages:
1. Our price is competitive and we take responsibility to any quality uncertainty.
2. Our pursuit of first-rate quality, reasonable prices and comprehensive after sales services offers both potential and long-standing clientele confidence in our company.
3. High automation level producton line to reduce cost on labor and increase production.
4. Innovative design of hot washer and washing tank.
5. PLC control, Choose motor brand according to customer's requirements.
6. We use 304 stainless steel to produce machines which contacting water.
7. Professional design team to design every project according to cutomer's need.
Main Technical Dates:

Material	Model	Capacity	Installed power	Water supply	Manpower	Area required
PEPP film/bag/sacks	ME	300kg/h	120 KW	4-5m3/h	1-2 person	23*5*3.5(L*W*H)
		500kg/h	185 KW	5-6m3/h	1-2 person	25*6*5.5(L*W*H)
		1000kg/h	270 KW	7-8m3/h	4-5 person	40*6*5.5(L*W*H)

Application:
PE PP plastic films/bags recycling machine is mainly used to recycling waste plastic PE/LDPE/LLDPE/PP films/bags, PP woven bag, PP cement bags,PP Jumbo bag and so on
Machines pictures:
• Friction washer loader
Wash with high speed to remove the dirty and load out material, high speed with 600 RPM per minute
We have two pieces water pipe, one is weld on mesh screen external which is used to wash PE PP flakes. another one is weld on machine side which is use to wash mesh screen.
• Dry or Wet Crusher Granulator
Specially T-shape rotor for higher output and less power consumption
used to reduce plastic film/sacks/bags into flakes final flakes size:40-60mm

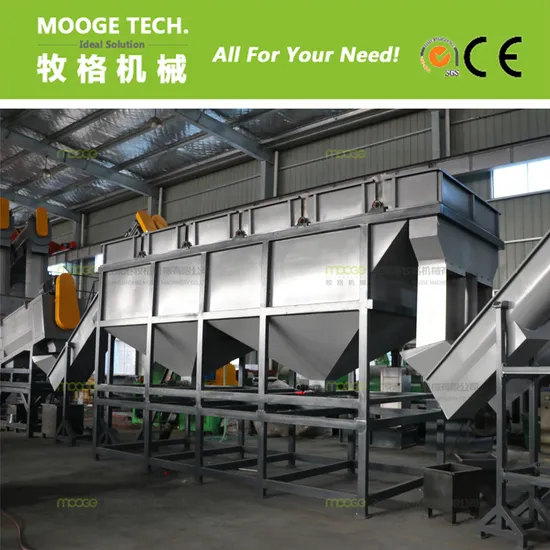

• Chemical Hot Wash Tank (Optional)
remove greasy dirt and glue from flakes
Feeding caustic soda/detergent to washing, heating by electricity or customized
Temperature protecting layer made of rockwool
• High Speed Dewatering Machine with Hot air drying machine
remove moisture from flakes, moisture remain will be around 5%,with hot air dryer, final moisture content roughly <3%
Optional machines:
Packing & Shipping:
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Our Services:
Customer's service
1.Mooge company can provide turn-key project for you, only you have any idea to start plastic recycling factory plant.
2.Mooge company have professional design team, our engineer can draw flow chart of workshop for you .
3.Mooge company can make the best recycling solution for you according to your materials.
After sale service
1. We send the engineers to help you do installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book

a.Manufacture PE PP films recycling machine/line/plant according to your request.

b.Professional suggestion of engineer

c.Professional technical service.

d.All payment terms of T/T,L/C,D/A,D/P, Western Union MoneyGram is accepted

e.Good after-sales service

f.We can manufacture 100 sets PE PP films recycling machine/line/plant every year.

FAQ:
1- How to choose proper products you want?
• Please tell us as detail as what you want
• What's your raw material it is?
• What's the final products you want to produce?
• What's capacity you want it performance?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
• We always up date the new technology to every customer.
MOOGE is a leading waste plastic recycling machinery manufacturer in China,,dedicated to series waste plastic recycling machine with more than 10 years plastic machinery manufacturing experience. If you have related requirements about plastic crushing washing recycling granulating/pelletizing line, please do not hesitate to let us know.
If you have any questions or need any details, please contact me at any time:
Our company website: moogetech.en.made-in-china.com Welcome to visit our factory at any time! (very near Shanghai)
