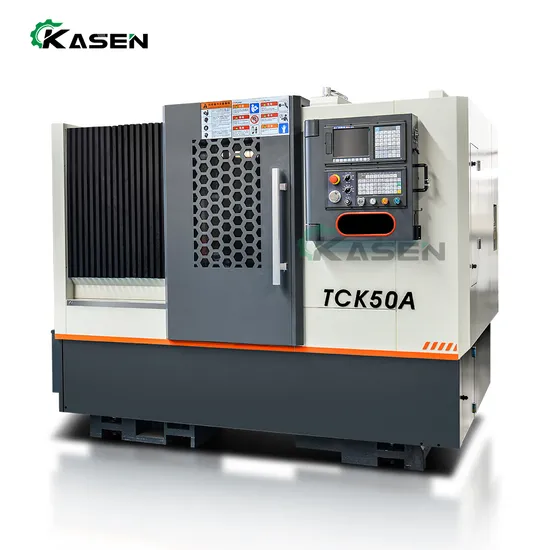

Chinese Turret Type Fanuc Control Tck50 C Axis Y Axis CNC Turning
Basic Info.
Model NO.
TCK50
Type
Turret Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
CNC Lathe Machine
Maximum Rotation Diameter on The Bed
550mm
Maximum Cutting Diameter (mm)
440mm
Repeatability (X/Y/Z) (mm)
0.003
Positioning Accuracy (mm)
0.005
Tool Installation Size (mm)
25X25
Spindle Through
66mm
Spindle Nose
A2-6
Number of Tool Holders
12 Workstations
Spindle Speed
35-3000rpm
Voltage
220V/380V
Tailstock Travel (mm)
480mm
Tip Taper
Mt5
X-Axis Travel (mm)
280mm
Z-Axis Travel (mm)
525mm
Transport Package
Plywood Wooden Box
Specification
2750*1650*1850mm
Trademark
Kasen
Origin
China
HS Code
8458110090
Production Capacity
100 Sets/Month
Product Description
Chinese Turret Type Fanuc Control TCK50 C Axis Y Axis CNC TurningProduct Description
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Product Parameters
| parts | project | TCK50 |
| Processing range | Maximum rotation diameter on the bed (mm) | Φ550 |
| Maximum cutting diameter (mm) | Φ440 | |
| Maximum cutting length (mm) | 450 | |
Itinerary and Feed | X-axis travel (mm) | 280 |
| Z-axis travel (mm) | 525 | |
| X-axis movement speed (mm/min) | 24000 | |
| Z-axis movement speed (mm/min) | 24000 | |
| Hand wheel (mm) | 0.001/0.01/0.1 | |
| X, Z feed speed (mm/min) | 0~5000 | |
| X, Z manual feed speed (mm/min) | 0~1260 | |
| Position accuracy | X-axis repeat positioning accuracy (mm) | 0.005 |
| X-axis positioning accuracy (mm) | 0.01 | |
| Z-axis repeat positioning accuracy (mm) | 0.006 | |
| Z-axis positioning accuracy (mm) | 0.015 | |
| Spindle | Spindle speed (rpm) | 35-3000 |
| Spindle maximum torque (N.m) | 48 | |
| Spindle nose | A2-6 | |
| Spindle through hole diameter (mm) | Φ66 | |
| Hollow hydraulic chuck through hole diameter (mm) | Φ50 | |
| chuck | 10"(Optional 12") | |
Dota | Number of tool holders | 12 workstations |
| Tool changing time (s) | 0.25 | |
| Tool installation size (mm) | 25×25 | |
| Boring tool holder installation diameter (mm) | Φ32 | |
| Tailstock | Tailstock travel (mm) | 480 |
| tip taper | MT-5# | |
| Main motor | Main motor power (kw) | 7.5 (4500rpm) |
| Main motor torque (N.m) | 48 | |
| X, Z axis Feed motor | X-axis feed motor power (kw) | 2.3 |
| X-axis feed motor torque (N.m) | 15 | |
| Z-axis feed motor power (kw) | 2.3 | |
| Z-axis feed motor torque (N.m) | 15 | |
| cooling system | Coolant capacity (L) | 200 |
| Motor type (1HP) (kw) | 0.18 | |
| size | Installation (length*width*height) (mm) | 2697/1795/1860 |
| weight | Mechanical weight (kg) | 3600 |
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
