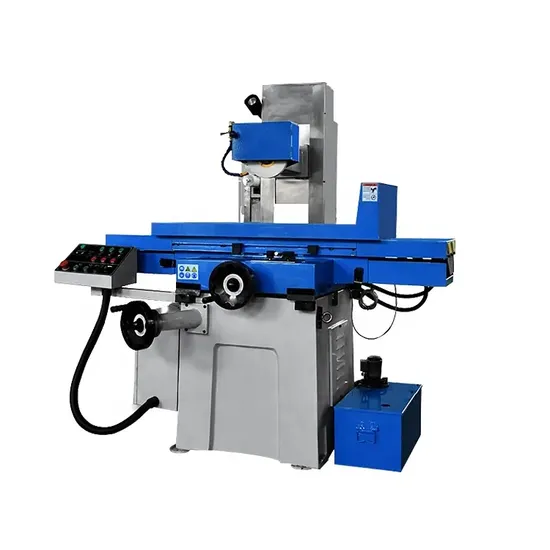

High Precision Manual Surface Grinding Machine Rectificadora Plana Belt Grinding Machine

Product Description

Detailed Photos
Product Parameters

Content	KY-618
Work table size	150x457mm
The largest grinding width	160mm
The spindle to work surface distance	350-400mm
The standard size of disk	150x400mm
About feed/manual	485mm
Feed/manual before and after stroke	180mm
Hand wheel before and after each calibration feed	0.02mm
Tum hand wheel before and after each feeding	5mm
Lifting feed every scale feed/the handwheel	0.005mm
Every turn the handwheel to feed	1mm
Grinding wheel size (D+W+R)	180x16x32mm
The spindle speed 50/60 hz)	3600/3000rpm
The spindle motor	1.5 or 2HP

Machine Features
1. The main casting is annealed and quartined without deformation precision spondle,direct junction B-3 motor (1.5 horsepower)
2. The main column and splndle unit have strong rigidity,more suitable for super hard workpart forming grinding
3. Automatic lubrication system Using closed loop type lubrlcation system design,automatic import electromagnetlc oil pump oil,when the main shaft starts,the lubricating oil will automatically circle,Forced lubrication is carried out on the front and back,left and right screws and sildes,which can be greatly reduced low slide wear. An oil mirror is installed above the column to monitor the lubrication situation. Company Profile
Quanzhou kunyuan machinery co., LTD. Is a collection of production, supply and sales for the integration of whole registered capital of 8 million yuan, more than 60 employees comprehensive enterprise. And passed the ISO9001 quality system certification in 2019. We have professional processing team and complete machine assembly team. Plant covers an area of about 15,000 square meters, complex building 1300 square meters. It has two sets of 2.5-ton medium frequency induction furnaces, four resin sand production lines and large annealing furnaces and complete supporting facilities. Monthly output of more than 1200 tons. Since the establishment of the factory, it has won the title of "standard enterprise", "National high-tech Enterprise", "Science and Technology small giant" and "contract-abiding and trustworthy" enterprise. It has 18 practical patents and one invention patent. The main casting products are: shoe oil cylinder, knitting machine four large parts, precision grinding machine four large parts, machine bed and other ductile iron and gray cast iron two categories.
FAQ
Q:Where are you company locadted?
A:Our headquater is located in QUANZHOU city,FUJIAN province.
Q : Are all the main spare parts of machine are produced by your company ?
A : Yes, all the main spare parts are produced by our company with most advanced processing.
Q : Will your machine be tested and adjusted before the machine delivery ?
A : Yes, we will test and adjust the machine before delivery, also if customer have special fabric demand , we can knit and test it in the machine before machine delivery
Q : How long does the warranty last ?
A : We offer warranty for about one year after customer received our products.
