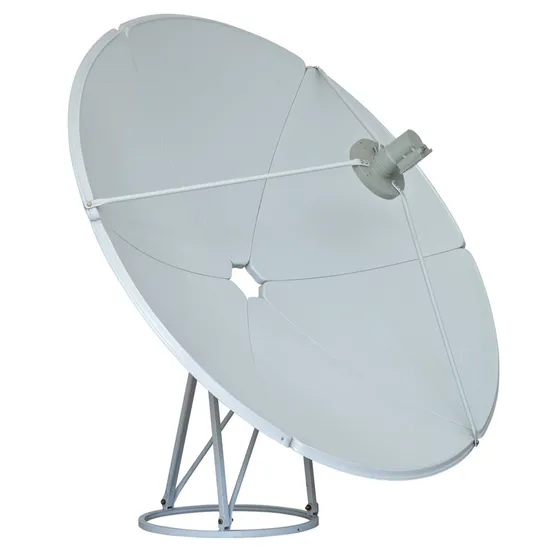

High Gain 180cm Offset Satellite Dish Antenna

Product Description

180cm Satellite Dish TV Antenna (180C-2)
Petal: 6
Diameter: 180CM
C band Gain: 4GHz 36dB
KU band Gain @ 12.45GHz 44.26dB
Cross polarity: 24.20dB
VSWR: 1.33dB
Focal length 570MM
Material Steel plate
Finishing Polyester Powder Coating
Support Ground Mount or Polar Mount
Color: White/gray
Elevation angle range: 0-90
Azimuth 0 -360
Aperture efficiency: 75%
F/D ratio 0.39
Pole diameter acceptable: 75mm
Ambient temperature: -40 - +55
Ralative humidity: 0 - 100%
Thickness: 0.6mm/0.5mm
Wind speed
Operational: 25m/sec
Survival: 40m/sec
Not damage 60m/sec
Working environmental temperature -40--+60
Individual packing with foam: 420PCS/20 container
Bulk pack: /nude pack with accessories 10 set/carton: 960PCS/20 container
OEM/ODM Service

(1) OEM/ODM project is welcome .with our professional top service .you could make your own special and new design.

(2) The MOQ for customized products is varied from 500pcs to 5000pcs or even more.

(3) We always respect our customers'copyright or business secrets

Other Details:

1. Samples policy

For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer.
2. Our main market

Latin America, Africa, Mid East, Asia.

3. About payment

T/T,L/C,and other Payment can be discussed.
We Provide You With Sincerely Service, if you interest, pls contact us NOW!!!
