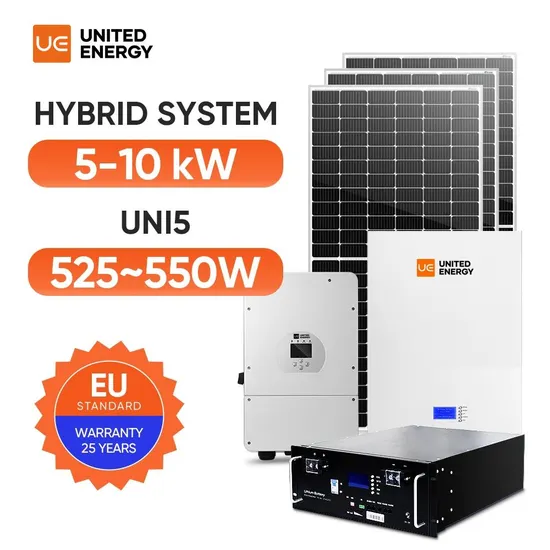

Complete Kit Solar Energy System 5kw 8kw 10kw 3 Phases with Lithium Batteries Solar Energy Hybrid System

Product Description

Product Description
Warranty
Specifications

Model	UE-3KW-HY	UE-5KW-HY	UE-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	UE-3K-SG04LP1-EU	UE-5K-SG03LP1-EU	UE-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set
Model	UE-15KW-HY	UE-20KW-HY	UE-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	UE-5K-SG03LP1-EU 3 Pieces	UE-10K-SG04LP3-EU 2 Pieces	UE-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

System Components
Half Cut Mono 550W Solar PanelPeak Power Watts: 550WMaximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A Dimensions:2279x1134x35mm Weight:26.9 kg Hybrid Solar Inverter 48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.Max. charging/discharging current of 240AMax.10pcs parallelDC couple and AC couple to retrofit existing solar systemMonitoring SystemOpen station supports one-click installation and registrationProblem support one-click dispatch and navigationSafe operation, traceable logs, etcSupport full lifecycle data storage to ensure data security and reliability Wall Mounted LiFePo4 Battery15-20 years design life. Up to 6000 + cycle IlfeWall mount or ground stack brick, simply connecting to inverterBattery module is scalable for any larger storage system.Battery modular built in high quality BMS. Protect battery cells all the way.Lithium iron phosphate battery cell, stay safe with battery storage at home.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 YearsDC & AC Disconnect SwitchIP Rating: IP66Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solarPV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy' s products have been widely applied in over 150 countries.UE Factory
