Industrial Scrap Whole Rubber Tyre Tire PP Film Plastic Pet Bottle Wood Pallet Cardboard Hard Disk Animal Bone Shredder Crusher Cutting Machine Machinery

Product Description

Application
1. Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.
2. Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
3. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
4. Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
5. Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.
6. Waste Household Appliances: TV, washing machine, refrigerator shell etc.
7. Pipes: large pipes, pipe fittings, PE pipes etc.
8. Scrap tires: car tires, truck tires etc.
9. All kinds of Kitchen waste: domestic waste, rdf derivatives, medical waste,garden waste etc.
Main Technical Parameters

model	Cutting chamber	Blade diameter(mm)	Blade thickness(mm)	Number of blades	motor	Blade material
JL-500	500*500mm	250mm	20mm	25pcs	7.5KW+7.5KW	9CrSi/SKD11/D2
JL-600	600*400mm	200mm	20mm	30pcs	11KW+11KW	9CrSi/SKD11/D2
JL-800	800*600mm	300mm	20mm	40pcs	18.5KW+18.5KW	9CrSi/SKD11/D2
JL-1000	1000*600mm	300mm	20mm	50pcs	22KW+22KW	9CrSi/SKD11/D2
JL-1200	1200*600mm	300mm	30mm	40pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1200	1200*800mm	400mm	50mm	24pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1600	1600*1000mm	500mm	50mm	32pcs	45KW+45KW	9CrSi/SKD11/D2
JL-1800	1800*1200mm	600mm	60mm	30pcs	55KW+55KW	9CrSi/SKD11/D2
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials,output size,capacity,Capacity requirements,etc.) and attach your contact information(such as phone number,e-mail,facebook,whatsapp,wechat,etc.)

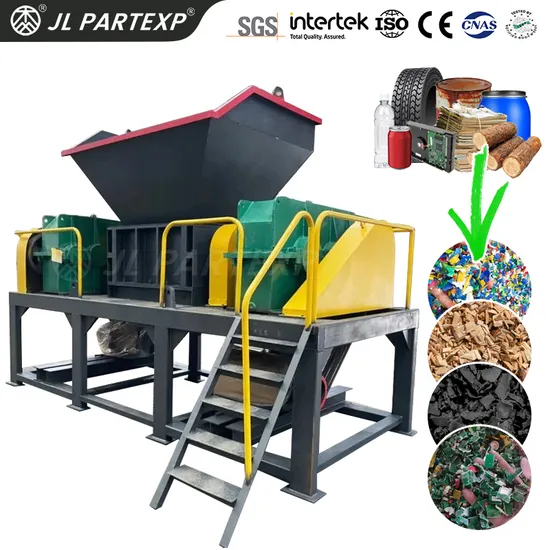

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1. The shredder machine with big feed hopper allows us can put the big material.
2. The special design rotary knife work very efficiency.
3. The shredder machine is control by PLC control system; the blade can reverse to protect the machine and close automatically.
4. The knife is made with special alloy steel,through high temperature treatment,it can work for long life time.
5. Knife is very easy to change.
6. The machine is equipped with an extra large pulley to increase the inertia of the crusher, which can save energy and increase the crushing capacity.
7.Double shaft cutting system:Using different blades according customers' material.
8.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.
9.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
Various Models Available for Customization

Factory Introduction
We are a collection of scientific and technological research and production company,specialize in shredder machine ,import and export business the professional manufacturer.
Our main products:Single shaft shredder machine,small shredder,Double shaft shredder,kitchen waste shredder,metal shredder,rubber and tire shredder,plastic shredder,wood shredder,cans shredder,cars shredder,woven bag shredder,film shredder,crusher etc.
Our company has a professional technical team of engineers for shredder machine research and design, machining, assembling, repairing.
We always insist the principle of "Quality First,Reputation first" to provide best service .We ask for "Pragmatic and honest", to be a responsible company. We hope to establish a long term relationship with you. We sincerely hope we can build good future,hand in hand.
