1000L Fixed Electric Concrete Mixer (JS1000)
| US$10,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JS1000
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m3/H
Feeding Height
1370mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Discharging Volume
1000L
Charging Volume
1500L
Drum Rotation Speed
35r/Min
Max. Aggregate Diameters
80mm
Mixing Motor Power
18.5kw
Overall Size
3050*2300*2680mm
Lifting Motor Power
5.5kw
Weight
5200kgs
Voltage
380V
Pump Motor Power
0.75kw
Transport Package
Nude
Specification
CE
Trademark
kudat
Origin
China
HS Code
847461000
Production Capacity
300unit/Month
Product Description

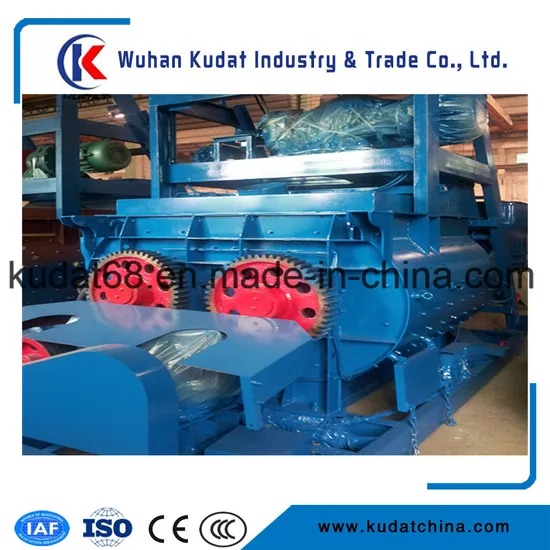

1000L Electric Twin Horizontal Shafts MixersFor Concrete Mixing Works
Specifications:
| Model | JS1000 | |
| Discharging Volume(L) | 1000 | |
| Charging Volume(L) | 1500 | |
| Max. Aggregate Size(mm) | 80/100 | |
| Weight(Ton) | 5.20 | |
| Cycle Time(s) | ≤ 60 | |
| Mixing Time(s) | ≤30 | |
| Mixing Blades | Speed(r/min) | 30 |
| Quantity | 10 | |
| Mixing Motor | Model | Y180M-4-B3 |
| Power(KW) | 2x18.5 | |
PROFILE
Twin horizontal shafts mixer is a new main designed by ourselves on the basis of
absorbing advanced foreign techniques and used to mix dry hardness, half dry
hardness, plastic materials and concrete of different batching ratio to meet the
requirement of different construction conditions. They are widely used as the
matched main machine of concrete plant. JS750, JS500 mixer can be used
separately.
Performance features:
Arc lining board adopts high chromium wear-proof cast iron and end lining
board adopts high manganese wear- proof cast steel. The high wear-proof
ability can greatly improve the service life of main machine.
Adopted bolts for fixing, the change and adjustment of the lining board will be
more convenient and fast.
Shaft and sealing adopts multi-layer sealing device with good leakage-proof.
Excellent mixing performance
The main mixer offers advantages as follows:
Advanced mechanism, compact structure, reliable working, high productivity, low power
consumption and low noise. It suits to mix the dry hard, half dry hard, plastic and other
recipes of concrete.
